4DHDMI
Description
This datasheet covers all of the 4DHDMI Series of display products.
Any models that are listed in this Datasheet that are not shown on our website, or a listed but state 'Coming Soon' are still either in development or are coming soon. Ask our Sales team for information and an ETA.
The 4DHDMI Series has a wide selection of sizes of HDMI Monitors / Display products, which can be integrated into products, used for development and engineering work, or by End-Users in the home/work/car etc. They can all interface to virtually any HDMI output product such as a Single Board Computer (SBC), PC, MAC, DVD/Blueray Players, etc.
In the range of 4DHDMI displays, there are both traditional rectangular displays as well as round displays. Both offer a wide range of final application uses.
Round Displays are available in 3.4" and 4.0" diameters, while rectangular displays are available in 4.3", 5.0", 7.0", 8.0", 9.0", 10.1", 12.1" and 15.6" sizes. There are a number of resolutions and brightness options to choose from, along with non-touch and Capacitive Touch versions.
Some models offer a mounting solution, such as mounting tabs off the PCBA, or mounting tabs off the LCD itself, and some offer no specific mounting solution - leaving it up to the User to mount as they see fit. Cover Lens Bezel versions are available as a customisable option, where a glass bezel of your required size, shape and colour (with or without logos) can be made to order. Cover Lens Bezel mounting is available in all sizes, not just what is listed, so if you have a requirement that differs from what is listed, please make contact with our Sales team. Refer to the Notes after the 4DHDMI Model Table for more information.
Coupled with these options, it is also possible to custom order any of these with various Cover Glass Treatments, such as Anti Glare (AG), Anti Reflective (AR), and Anti Fingerprint (AF), to better suit the situation these products will be used in. As a standard option, the displays do not have any Cover Glass Treatments.
Most 4DHDMI products are capable of being USB Powered (feature a USB port, either microUSB or USB-C depending on the model), and some also offer a 12VDC Barrel Jack. Some of the larger sizes can only be powered of 12V. Please see details specific to each size.
Different models feature different HDMI port sizes, some are Full-Sized, some are Mini-HDMI and one is micro-HDMI. Please refer to each specific product information to determine what is used on the product of interest.
Almost all 4DHMI products have an adjustable backlight, controlled either by a button control or via a menu system (OSD), except the 3.5" and 4.0" round models, and the 10.1" 'L' models which only offer a fixed brightness level.
Customisations can be possible, please discuss with our Sales Team regarding your requirements. More advanced control such as Operating System DDCCI Protocol control may also be able to be implemented, please speak to us for more information.
General Details
HDMI Information
Every 4DHDMI product is compliant with HDMI v1.4, and utilises a standard HDMI interface.
Some products feature a full-sized HDMI port, some feature a mini-HDMI port, and some feature a micro-HDMI port. The appropriate cable or adaptor is therefore required. Please refer to the specific information regarding the model you are interested in, for more detail.
Note
Each display ships with a 50cm long HDMI cable, appropriate for the model, unless larger or custom orders do not require this.
Power Requirements
Most 4DHDMI products are capable of being powered over USB. Some models have 2 USB ports, which can aid in achiving enough current from the USB ports to power the 4DHDMI product, while some have 1.
Some models have one or two micro-USB ports, while some have one or two USB-C ports. The second USB port is typically used for the Touch interface to the Computer, however it also parralels the power to the first USB port. On non-Touch models, if two USB ports are provided, they both function as power input USB's.
Some models also feature a DC-Jack, where 12VDC power can be supplied via a standard barrel jack connector, instead of using USB Power. On some of the larger sizes, this DC-Jack or 12V input is the primary way to power the module - as 5V from USB is not sufficient as a power source.
Note
- Each display ships with a 50cm long USB cable, appropriate for the model, unless larger or custom orders do not require this.
- Please refer to the specific model information for power usage requirements.
- On models which feature as 12V DC-Jack, cables and power adaptors are not provided, however please contact our Sales Team if you require a solution here or have specific requirements.
Audio Output
HDMI is capable of carrying Audio along with the display signals, and some 4DHDMI models are capable of powering a speaker and/or having a 3.5mm stereo headphone style jack. Not all models support Audio, please refer to the specific information of each model.
Brightness Adjustment
Most 4DHDMI models have the ability to have the backlight brightness adjusted to suit the end application, or the end-users preference.
Some models feature an OSD (On Screen Display) menu system, where the brightness can be adjusted with the buttons provided, and saved. Some models do not have buttons on them directly, and require a plug-in button board. By default, the dispaly modules do not come with this external button board, however it is availble on request from our Sales Team, please make contact with your requirements.
Some models feature a single push button on the PCBA, which when pressed will step and cycle through the various brightness options available, and the selection will be saved.
On the Round 4DHDMI products and 10.1" 'L' models, brightness adjustment is not available, and is at a fixed brightness - this cannot be changed by the end-user.
Product Selection
Click on the Model Number from the table below, to jump to the section in the Datasheet that is specific to that model, including its mechanical drawing.
4DHDMI Model Table
| Model Number | Display Size | Resolution | Brightness (cd/m2) |
Touch Type | Mounting Type |
|---|---|---|---|---|---|
| 4DHDMI-34-800-800-CT-CLB-400 | 3.4'' Round | 800 x 800 | 400 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-34-800-800-NT-NM-400 | 3.4'' Round | 800 x 800 | 400 | Non Touch | N/A |
| 4DHDMI-40-720-720-CT-CLB-800 | 4.0'' Round | 720 x 720 | 800 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-40-720-720-NT-NM-800 | 4.0'' Round | 720 x 720 | 800 | Non Touch | N/A |
| 4DHDMI-43-480-272-CT-EAR-500 | 4.3'' | 480 x 272 | 500 | Capacitive Touch | PCBA Tabs |
| 4DHDMI-43-480-272-CT-EAR-1000 | 4.3'' | 480 x 272 | 1000 | Capacitive Touch | PCBA Tabs |
| 4DHDMI-43-480-272-NT-EAR-500 | 4.3'' | 480 x 272 | 500 | Non Touch | PCBA Tabs |
| 4DHDMI-43-480-272-NT-EAR-1000 | 4.3'' | 480 x 272 | 1000 | Non Touch | PCBA Tabs |
| 4DHDMI-43-800-480-CT-EAR-500 | 4.3'' | 800 x 480 | 500 | Capacitive Touch | PCBA Tabs |
| 4DHDMI-43-800-480-CT-EAR-1000 | 4.3'' | 800 x 480 | 1000 | Capacitive Touch | PCBA Tabs |
| 4DHDMI-43-800-480-NT-EAR-500 | 4.3'' | 800 x 480 | 500 | Non Touch | PCBA Tabs |
| 4DHDMI-43-800-480-NT-EAR-1000 | 4.3'' | 800 x 480 | 1000 | Non Touch | PCBA Tabs |
| 4DHDMI-50-800-480-CT-EAR-500 | 5.0'' | 800 x 480 | 500 | Capacitive Touch | PCBA Tabs |
| 4DHDMI-50-800-480-CT-EAR-1000 | 5.0'' | 800 x 480 | 1000 | Capacitive Touch | PCBA Tabs |
| 4DHDMI-50-800-480-NT-EAR-500 | 5.0'' | 800 x 480 | 500 | Non Touch | PCBA Tabs |
| 4DHDMI-50-800-480-NT-EAR-1000 | 5.0'' | 800 x 480 | 1000 | Non Touch | PCBA Tabs |
| 4DHDMI-70-800-480-CT-EAR-500 | 7.0'' | 800 x 480 | 500 | Capacitive Touch | PCBA Tabs |
| 4DHDMI-70-800-480-NT-EAR-500 | 7.0'' | 800 x 480 | 500 | Non Touch | PCBA Tabs |
| 4DHDMI-70-1024-600-CT-EAR-500 | 7.0'' | 1024 x 600 | 500 | Capacitive Touch | Display Tabs |
| 4DHDMI-70-1024-600-CT-EAR-1000 | 7.0'' | 1024 x 600 | 1000 | Capacitive Touch | Display Tabs |
| 4DHDMI-70-1024-600-NT-EAR-500 | 7.0'' | 1024 x 600 | 500 | Non Touch | Display Tabs |
| 4DHDMI-70-1024-600-NT-EAR-1000 | 7.0'' | 1024 x 600 | 1000 | Non Touch | Display Tabs |
| 4DHDMI-70-1280-800-CT-EAR-500 | 7.0'' | 1280 x 800 | 500 | Capacitive Touch | Display Tabs |
| 4DHDMI-70-1280-800-CT-EAR-1000 | 7.0'' | 1280 x 800 | 1000 | Capacitive Touch | Display Tabs |
| 4DHDMI-70-1280-800-NT-EAR-500 | 7.0'' | 1280 x 800 | 500 | Non Touch | Display Tabs |
| 4DHDMI-70-1280-800-NT-EAR-1000 | 7.0'' | 1280 x 800 | 1000 | Non Touch | Display Tabs |
| 4DHDMI-80-1280-800-CT-EAR-500 | 8.0'' | 1280 x 800 | 500 | Capacitive Touch | Display Tabs |
| 4DHDMI-80-1280-800-CT-EAR-1000 | 8.0'' | 1280 x 800 | 1000 | Capacitive Touch | Display Tabs |
| 4DHDMI-80-1280-800-CT-NM-500 | 8.0'' | 1280 x 800 | 500 | Capacitive Touch | N/A |
| 4DHDMI-80-1280-800-CT-NM-1000 | 8.0'' | 1280 x 800 | 1000 | Capacitive Touch | N/A |
| 4DHDMI-80-1280-800-CT-CLB-500 | 8.0'' | 1280 x 800 | 500 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-80-1280-800-CT-CLB-1000 | 8.0'' | 1280 x 800 | 1000 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-80-1280-800-NT-EAR-500 | 8.0'' | 1280 x 800 | 500 | Non Touch | Display Tabs |
| 4DHDMI-80-1280-800-NT-EAR-1000 | 8.0'' | 1280 x 800 | 1000 | Non Touch | Display Tabs |
| 4DHDMI-80-1280-800-NT-NM-500 | 8.0'' | 1280 x 800 | 500 | Non Touch | N/A |
| 4DHDMI-80-1280-800-NT-NM-1000 | 8.0'' | 1280 x 800 | 1000 | Non Touch | N/A |
| 4DHDMI-90-1024-600-CT-EAR-500 | 9.0'' | 1024 x 600 | 500 | Capacitive Touch | Display Tabs |
| 4DHDMI-90-1024-600-CT-EAR-1000 | 9.0'' | 1024 x 600 | 1000 | Capacitive Touch | Display Tabs |
| 4DHDMI-90-1024-600-CT-NM-500 | 9.0'' | 1024 x 600 | 500 | Capacitive Touch | N/A |
| 4DHDMI-90-1024-600-CT-NM-1000 | 9.0'' | 1024 x 600 | 1000 | Capacitive Touch | N/A |
| 4DHDMI-90-1024-600-CT-CLB-500 | 9.0'' | 1024 x 600 | 500 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-90-1024-600-CT-CLB-1000 | 9.0'' | 1024 x 600 | 1000 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-90-1024-600-NT-EAR-500 | 9.0'' | 1024 x 600 | 500 | Non Touch | Display Tabs |
| 4DHDMI-90-1024-600-NT-EAR-1000 | 9.0'' | 1024 x 600 | 1000 | Non Touch | Display Tabs |
| 4DHDMI-90-1024-600-NT-NM-500 | 9.0'' | 1024 x 600 | 500 | Non Touch | N/A |
| 4DHDMI-90-1024-600-NT-NM-1000 | 9.0'' | 1024 x 600 | 1000 | Non Touch | N/A |
| 4DHDMI-90-1280-800-CT-EAR-500 | 9.0'' | 1280 x 800 | 500 | Capacitive Touch | Display Tabs |
| 4DHDMI-90-1280-800-CT-EAR-1000 | 9.0'' | 1280 x 800 | 1000 | Capacitive Touch | Display Tabs |
| 4DHDMI-90-1280-800-CT-NM-500 | 9.0'' | 1280 x 800 | 500 | Capacitive Touch | N/A |
| 4DHDMI-90-1280-800-CT-NM-1000 | 9.0'' | 1280 x 800 | 1000 | Capacitive Touch | N/A |
| 4DHDMI-90-1280-800-CT-CLB-500 | 9.0'' | 1280 x 800 | 500 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-90-1280-800-CT-CLB-1000 | 9.0'' | 1280 x 800 | 1000 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-90-1280-800-NT-EAR-500 | 9.0'' | 1280 x 800 | 500 | Non Touch | Display Tabs |
| 4DHDMI-90-1280-800-NT-EAR-1000 | 9.0'' | 1280 x 800 | 1000 | Non Touch | Display Tabs |
| 4DHDMI-90-1280-800-NT-NM-500 | 9.0'' | 1280 x 800 | 500 | Non Touch | N/A |
| 4DHDMI-90-1280-800-NT-NM-1000 | 9.0'' | 1280 x 800 | 1000 | Non Touch | N/A |
| 4DHDMI-101-1024-600-CT-EAR-500 | 10.1'' | 1024 x 600 | 500 | Capacitive Touch | Display Tabs |
| 4DHDMI-101-1024-600-CT-EAR-1000 | 10.1'' | 1024 x 600 | 1000 | Capacitive Touch | Display Tabs |
| 4DHDMI-101-1024-600-CT-NM-500 | 10.1'' | 1024 x 600 | 500 | Capacitive Touch | N/A |
| 4DHDMI-101-1024-600-CT-NM-1000 | 10.1'' | 1024 x 600 | 1000 | Capacitive Touch | N/A |
| 4DHDMI-101-1024-600-CT-CLB-500 | 10.1'' | 1024 x 600 | 500 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-101-1024-600-CT-CLB-1000 | 10.1'' | 1024 x 600 | 1000 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-101-1024-600-NT-EAR-500 | 10.1'' | 1024 x 600 | 500 | Non Touch | Display Tabs |
| 4DHDMI-101-1024-600-NT-EAR-1000 | 10.1'' | 1024 x 600 | 1000 | Non Touch | Display Tabs |
| 4DHDMI-101-1024-600-NT-NM-500 | 10.1'' | 1024 x 600 | 500 | Non Touch | N/A |
| 4DHDMI-101-1024-600-NT-NM-1000 | 10.1'' | 1024 x 600 | 1000 | Non Touch | N/A |
| 4DHDMI-101-1280-800-CT-NM-300(L) | 10.1'' | 1280 x 800 | 300 | Capacitive Touch | N/A |
| 4DHDMI-101-1280-800-NT-NM-300(L) | 10.1'' | 1280 x 800 | 300 | Non Touch | N/A |
| 4DHDMI-101-1280-800-CT-EAR-500 | 10.1'' | 1280 x 800 | 500 | Capacitive Touch | Display Tabs |
| 4DHDMI-101-1280-800-CT-EAR-1000 | 10.1'' | 1280 x 800 | 1000 | Capacitive Touch | Display Tabs |
| 4DHDMI-101-1280-800-CT-NM-500 | 10.1'' | 1280 x 800 | 500 | Capacitive Touch | N/A |
| 4DHDMI-101-1280-800-CT-NM-1000 | 10.1'' | 1280 x 800 | 1000 | Capacitive Touch | N/A |
| 4DHDMI-101-1280-800-CT-CLB-500 | 10.1'' | 1280 x 800 | 500 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-101-1280-800-CT-CLB-1000 | 10.1'' | 1280 x 800 | 1000 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-101-1280-800-NT-EAR-500 | 10.1'' | 1280 x 800 | 500 | Non Touch | Display Tabs |
| 4DHDMI-101-1280-800-NT-EAR-1000 | 10.1'' | 1280 x 800 | 1000 | Non Touch | Display Tabs |
| 4DHDMI-101-1280-800-NT-NM-500 | 10.1'' | 1280 x 800 | 500 | Non Touch | N/A |
| 4DHDMI-101-1280-800-NT-NM-1000 | 10.1'' | 1280 x 800 | 1000 | Non Touch | N/A |
| 4DHDMI-101-1920-1200-CT-NM-600 | 10.1'' | 1920 x 1200 | 600 | Capacitive Touch | N/A |
| 4DHDMI-101-1920-1200-CT-NM-800 | 10.1'' | 1920 x 1200 | 800 | Capacitive Touch | N/A |
| 4DHDMI-101-1920-1200-NT-NM-600 | 10.1'' | 1920 x 1200 | 600 | Non Touch | N/A |
| 4DHDMI-101-1920-1200-NT-NM-800 | 10.1'' | 1920 x 1200 | 800 | Non Touch | N/A |
| 4DHDMI-121-1280-800-CT-NM-500 | 12.1'' | 1280 x 800 | 500 | Capacitive Touch | N/A |
| 4DHDMI-121-1280-800-CT-NM-850 | 12.1'' | 1280 x 800 | 850 | Capacitive Touch | N/A |
| 4DHDMI-121-1280-800-CT-EAR-500 | 12.1'' | 1280 x 800 | 500 | Capacitive Touch | Display Tabs |
| 4DHDMI-121-1280-800-CT-EAR-850 | 12.1'' | 1280 x 800 | 850 | Capacitive Touch | Display Tabs |
| 4DHDMI-121-1280-800-NT-NM-500 | 12.1'' | 1280 x 800 | 500 | Non Touch | N/A |
| 4DHDMI-121-1280-800-NT-NM-850 | 12.1'' | 1280 x 800 | 850 | Non Touch | N/A |
| 4DHDMI-121-1280-800-NT-EAR-500 | 12.1'' | 1280 x 800 | 500 | Non Touch | Display Tabs |
| 4DHDMI-121-1280-800-NT-EAR-850 | 12.1'' | 1280 x 800 | 850 | Non Touch | Display Tabs |
| 4DHDMI-156-1920-1080-CT-CLB-500 | 15.6'' | 1920 x 1080 | 500 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-156-1920-1080-CT-CLB-850 | 15.6'' | 1920 x 1080 | 850 | Capacitive Touch | Cover Lens Bezel |
| 4DHDMI-156-1920-1080-NT-NM-500 | 15.6'' | 1920 x 1080 | 500 | Non Touch | N/A |
| 4DHDMI-156-1920-1080-NT-NM-850 | 15.6'' | 1920 x 1080 | 850 | Non Touch | N/A |
Note
- Display Size, refers to the diagonal dimension of the Active Area of the display, the same way as a TV or computer monitor is defined.
- Non Touch, means no touch screen is available, it is display output only.
- Capacitive, means a Capacitive touch screen is available, offering user input from touch.
- Display Tabs/Ears, mean the display has metal mounting tabs as part of the LCD backlight, which are used for mounting by the customer, using bolts/screws.
- PCBA Tabs/Ears, mean the PCBA has PCB mounting tabs as part of the circuit board, which are used for mounting by the customer, using bolts/screws.
- Cover Lens Bezel, means the display has a glass bezel on the front which extends beyond the edges of the LCD size itself. This can be customised for size/shape as required with a custom order, and is used to mount directly to a panel or into a product using adhesive or tape. 3M adhesive is the typical mounting adhesive supplied, however other options are available on request, or simply bare glass so the customers production can apply sealant or similar as required. There is no 'standard' Cover Lens Bezel offered, this must be customised when ordered. Bezel Colour and logos can also be integrated upon request.
- N/A mounting, means no specific mounting solution is provided, allowing the customer to mount the LCD and circuit board in whatever way suits their application the best. Neither the Display nor the PCBA have mounting tabs, and there is no Cover Lens Bezel.
Specific Information
Refer to the 4DHDMI Model Table for an index to jump to the appropriate model 4DHDMI you are looking for.
4DHDMI-34-800-800-CT-CLB-400
- Details Coming Soon...
4DHDMI-34-800-800-NT-NM-400
- Details Coming Soon...
4DHDMI-40-720-720-CT-CLB-800
- Details Coming Soon...
4DHDMI-40-720-720-NT-NM-800
- Details Coming Soon...
4DHDMI-43-480-272-CT-EAR-500
- 4.3" Rectangular Display, IPS
- 480 x 272 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Air Bonded to LCD.
- PCB Mounting Tabs
- 500 cd/m2 brightness, Adjustable via OSD Menu
- Full-size HDMI Display Interface (19-pin), HDMI 1.4
- Mini-HDMI connector (19-pin) for Analog VGA Input Display Interface
- micro-USB Power, and micro-USB Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch.
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 1.25mm pitch horizontal connector
- Power / Menu / Up / Down / Exit Buttons for OSD Menu
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | 550 | 590 | 630 | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |

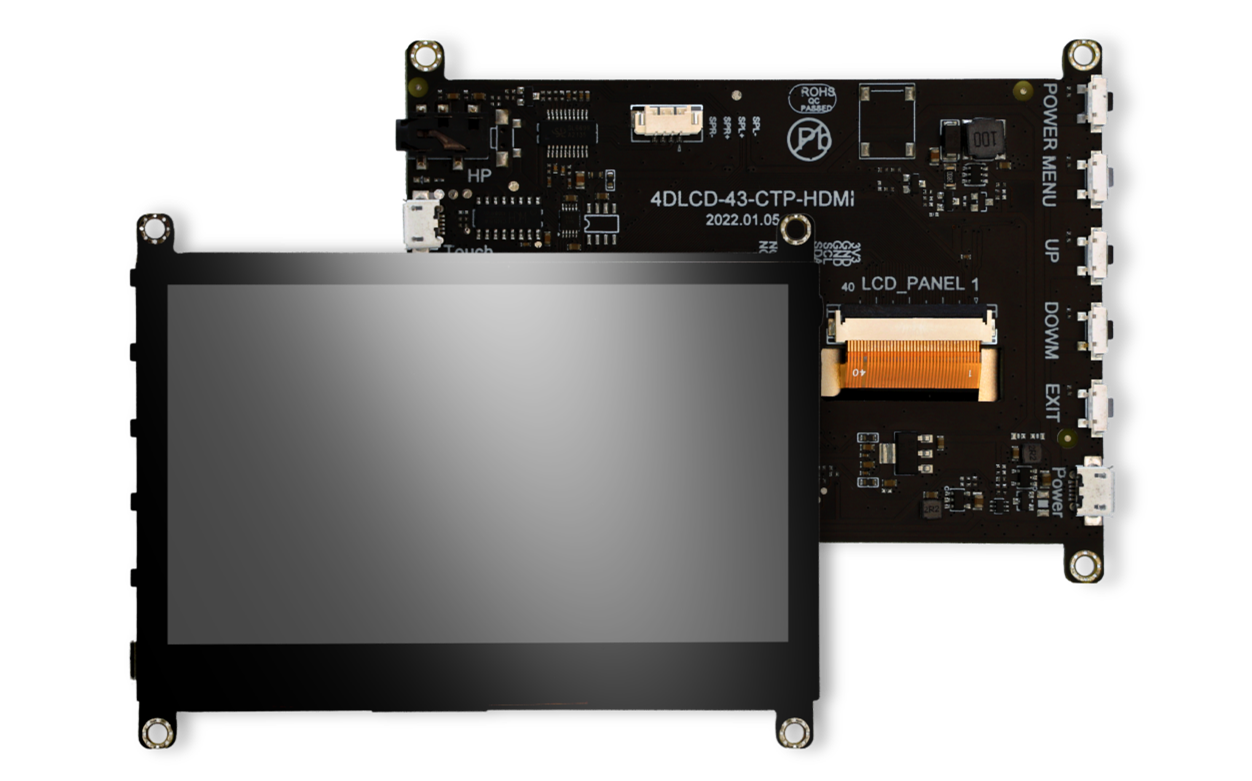

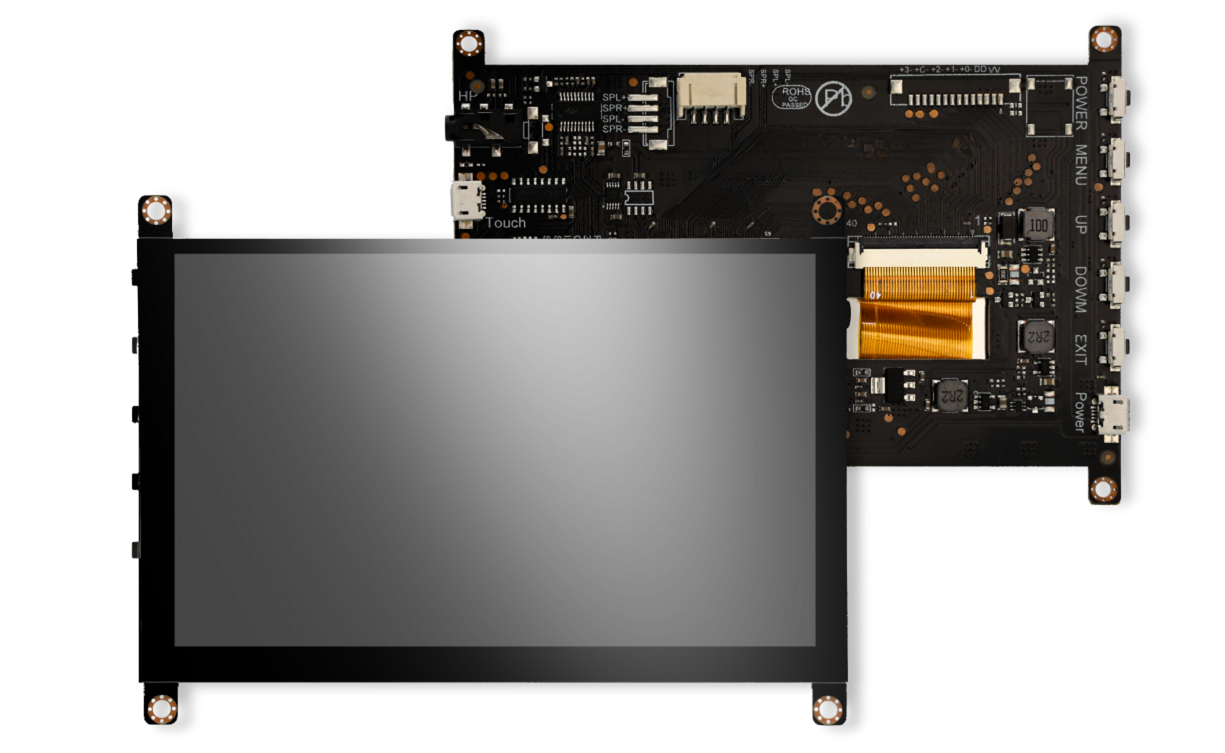

Product Photo

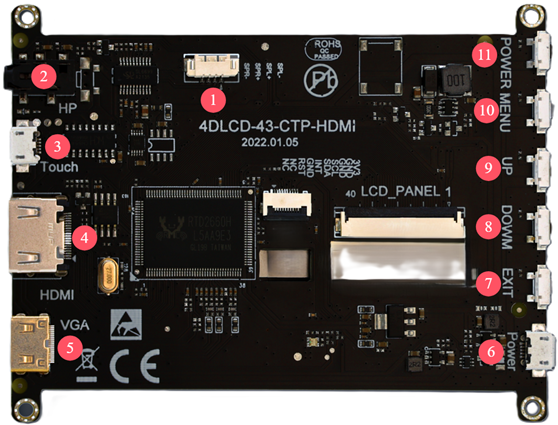

Product Connections
| No. | Function |
|---|---|
| 1 | 4-pin 1.25mm Speaker Interface |
| 2 | 3.5mm TRS Audio Output Interface (Headphones/Speaker) |
| 3 | 5V power & USB touch interface (micro USB) |
| 4 | Standard HDMI display interface (19-pin), HDMI 1.4 - See Note 2 |
| 5 | mini-HDMI Connector for Analog VGA input (19-pin) - See Note 1 |
| 6 | 5V power interface (micro USB) |
| 7 | EXIT Button - for OSD Menu |
| 8 | DOWN Button - for OSD Menu |
| 9 | UP Button - for OSD Menu |
| 10 | MENU Button - for OSD Menu |
| 11 | POWER Button |
Note 1
- Type: MINI HDMI Connector
- Purpose: Although this is a MINI HDMI connector, it is specifically designed to carry VGA (analog) video signals rather than HDMI (digital) signals.
- Description: A compact connector typically used for HDMI digital interfaces, repurposed here for VGA signal transmission to facilitate compatibility with existing infrastructure or due to space constraints.
- Pin Configuration: 19-pin MINI HDMI connector
- Signal Type: Analog VGA signal
- VGA cable only available on request, not supplied as standard
Note 2
- Type: Standard HDMI Connector
- Version: HDMI 1.4
- Description: Our 4.3-inch display is equipped with a Standard HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Type A connector
- Supported Resolution: Native resolution of 480x282 pixels, with compatibility up to 1080p for video sources
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-43-480-272-CT-EAR-1000
- Details Coming Soon...
4DHDMI-43-480-272-NT-EAR-500
- Details Coming Soon...
4DHDMI-43-480-272-NT-EAR-1000
- Details Coming Soon...

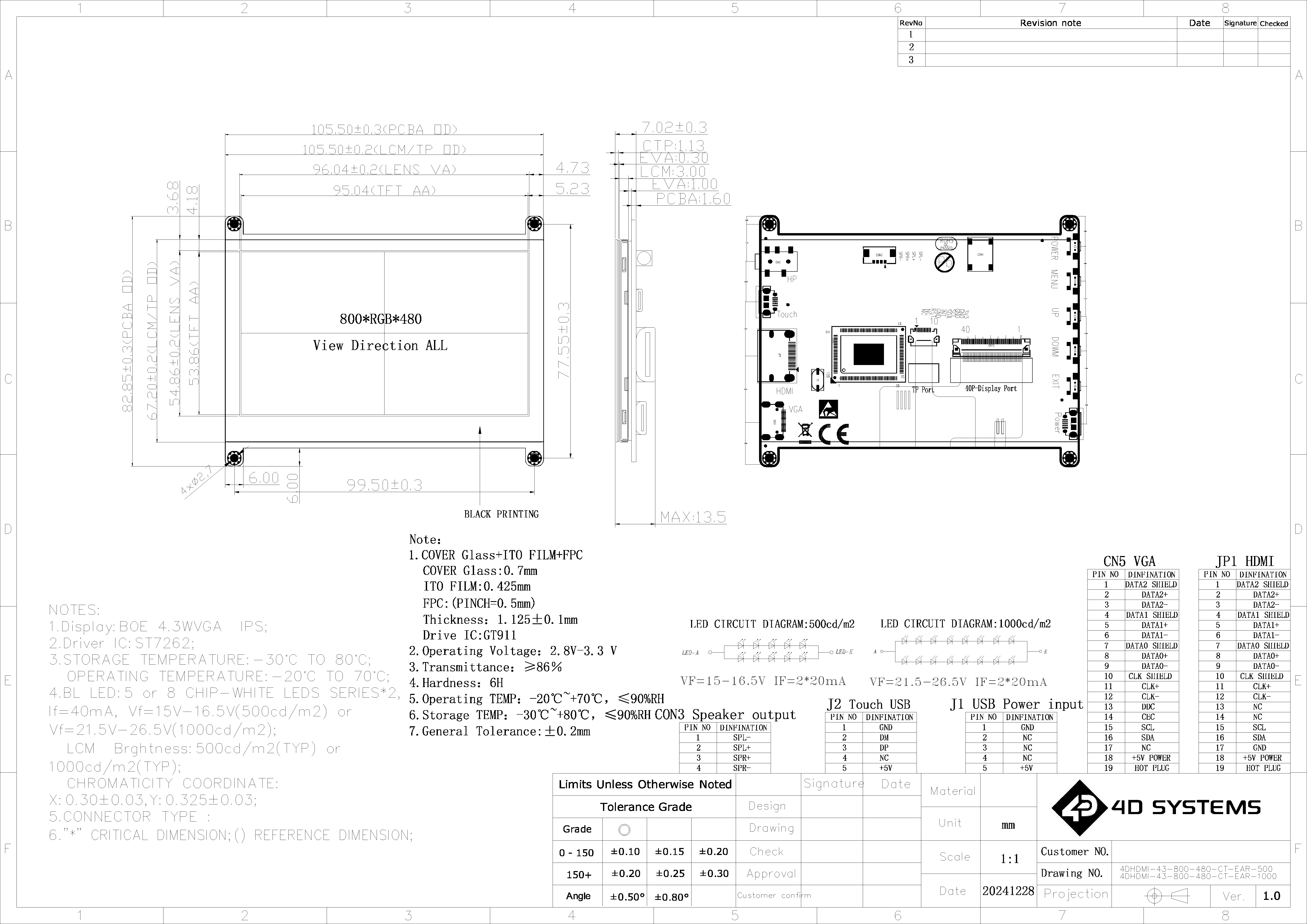

4DHDMI-43-800-480-CT-EAR-500
- 4.3" Rectangular Display, IPS
- 800 x 480 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Air Bonded to LCD.
- PCB Mounting Tabs
- 500 cd/m2 brightness, Adjustable via OSD Menu
- Full-size HDMI Display Interface (19-pin), HDMI 1.4
- Mini-HDMI connector (19-pin) for Analog VGA Input Display Interface
- micro-USB Power, and micro-USB Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch.
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal FFC connector
- Power / Menu / Up / Down / Exit Buttons for OSD Menu
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | xxx | xxx | xxx | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 1200:1 | - | - |
Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | 4-pin 1.25mm Speaker Interface |
| 2 | 3.5mm TRS Audio Output Interface (Headphones/Speaker) |
| 3 | 5V power & USB touch interface (micro USB) |
| 4 | Standard HDMI display interface (19-pin), HDMI 1.4 - See Note 2 |
| 5 | mini-HDMI Connector for Analog VGA input (19-pin) - See Note 1 |
| 6 | 5V power interface (micro USB) |
| 7 | EXIT Button - for OSD Menu |
| 8 | DOWN Button - for OSD Menu |
| 9 | UP Button - for OSD Menu |
| 10 | MENU Button - for OSD Menu |
| 11 | POWER Button |
Note 1
- Type: MINI HDMI Connector
- Purpose: Although this is a MINI HDMI connector, it is specifically designed to carry VGA (analog) video signals rather than HDMI (digital) signals.
- Description: A compact connector typically used for HDMI digital interfaces, repurposed here for VGA signal transmission to facilitate compatibility with existing infrastructure or due to space constraints.
- Pin Configuration: 19-pin MINI HDMI connector
- Signal Type: Analog VGA signal
- VGA cable only available on request, not supplied as standard
Note 2
- Type: Standard HDMI Connector
- Version: HDMI 1.4
- Description: Our 4.3-inch display is equipped with a Standard HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Type A connector
- Supported Resolution: Native resolution of 800x480 pixels, with compatibility up to 1080p for video sources
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-43-800-480-CT-EAR-1000
- Details Coming Soon...
4DHDMI-43-800-480-NT-EAR-500
- Details Coming Soon...
4DHDMI-43-800-480-NT-EAR-1000
- Details Coming Soon...

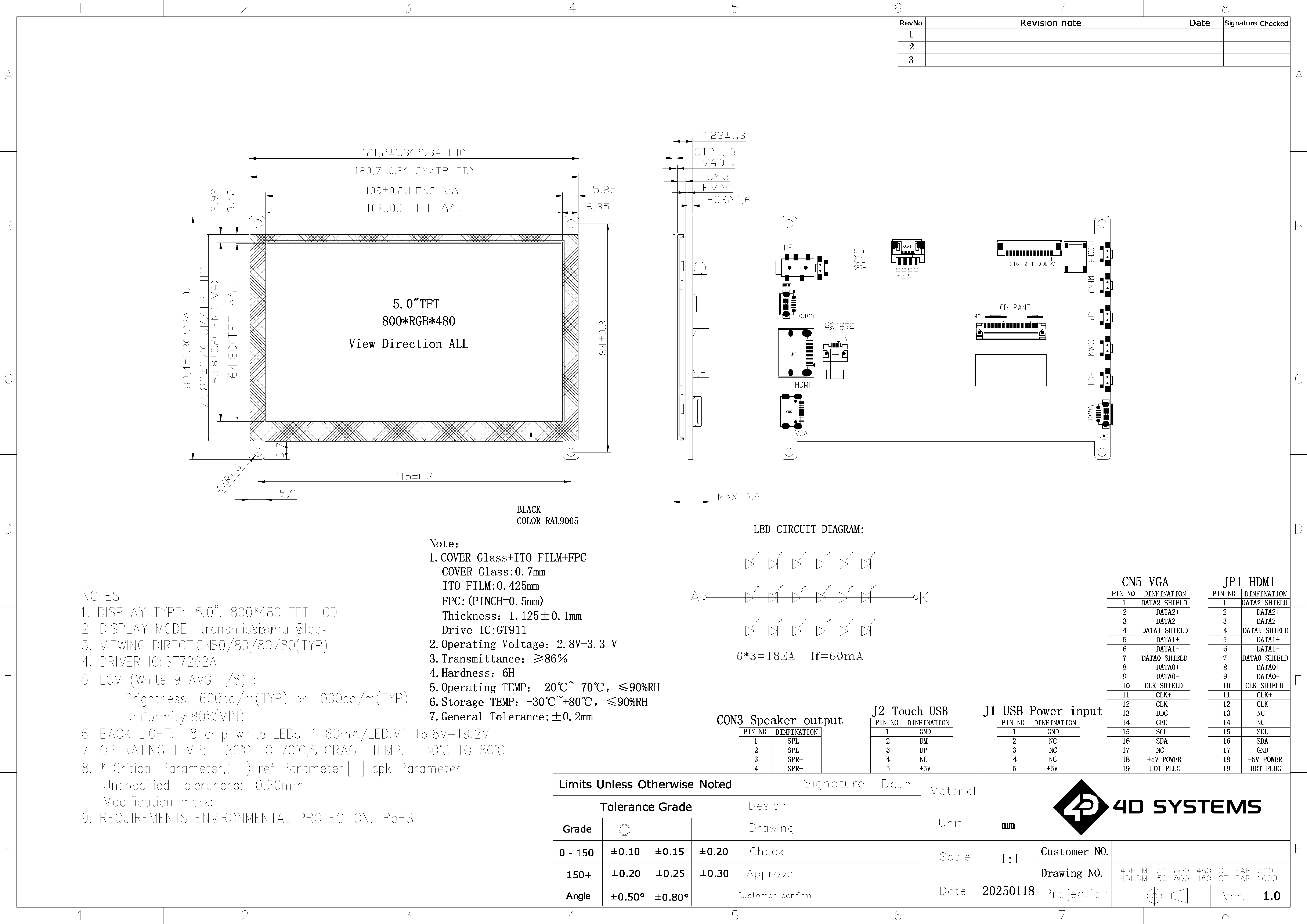

4DHDMI-50-800-480-CT-EAR-500
- 5.0" Rectangular Display, IPS
- 800 x 480 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Air Bonded to LCD.
- PCB Mounting Tabs
- 500 cd/m2 brightness, Adjustable via OSD Menu
- Full-size HDMI Display Interface (19-pin), HDMI 1.4
- Mini-HDMI connector (19-pin) for Analog VGA Input Display Interface
- micro-USB Power, and micro-USB Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch.
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal FFC connector
- Power / Menu / Up / Down / Exit Buttons for OSD Menu
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | - | 850 | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 1000:1 | - | - |

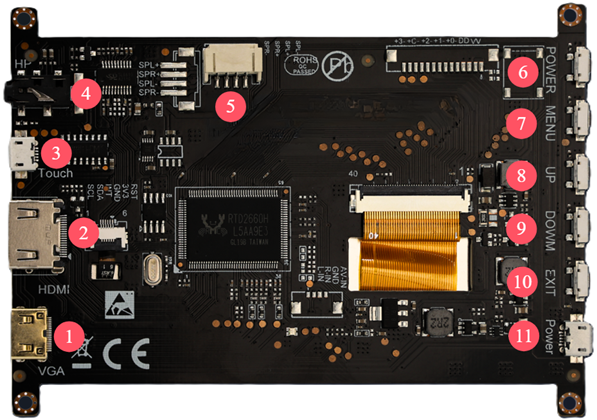

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | mini-HDMI Connector for Analog VGA input (19-pin) - See Note 1 |
| 2 | Standard HDMI display interface (19-pin), HDMI 1.4 - See Note 2 |
| 3 | 5V power & USB touch interface (micro USB) |
| 4 | 3.5mm TRS Audio Output Interface (Headphones/Speaker) |
| 5 | Speaker Interface 4-pin 2.0mm |
| 6 | POWER Button |
| 7 | MENU Button - for OSD Menu |
| 8 | UP Button - for OSD Menu |
| 9 | DOWN Button - for OSD Menu |
| 10 | EXIT Button - for OSD Menu |
| 11 | 5V power interface (micro USB) |
Note 1
- Type: MINI HDMI Connector
- Purpose: Although this is a MINI HDMI connector, it is specifically designed to carry VGA (analog) video signals rather than HDMI (digital) signals.
- Description: A compact connector typically used for HDMI digital interfaces, repurposed here for VGA signal transmission to facilitate compatibility with existing infrastructure or due to space constraints.
- Pin Configuration: 19-pin MINI HDMI connector
- Signal Type: Analog VGA signal
- VGA cable only available on request, not supplied as standard
Note 2
- Type: Standard HDMI Connector
- Version: HDMI 1.4
- Description: Our 5-inch display is equipped with a Standard HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Type A connector
- Supported Resolution: Native resolution of 800x480 pixels, with compatibility up to 1080p for video sources
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-50-800-480-CT-EAR-1000
- Details Coming Soon...
4DHDMI-50-800-480-NT-EAR-500
- Details Coming Soon...
4DHDMI-50-800-480-NT-EAR-1000
- Details Coming Soon...

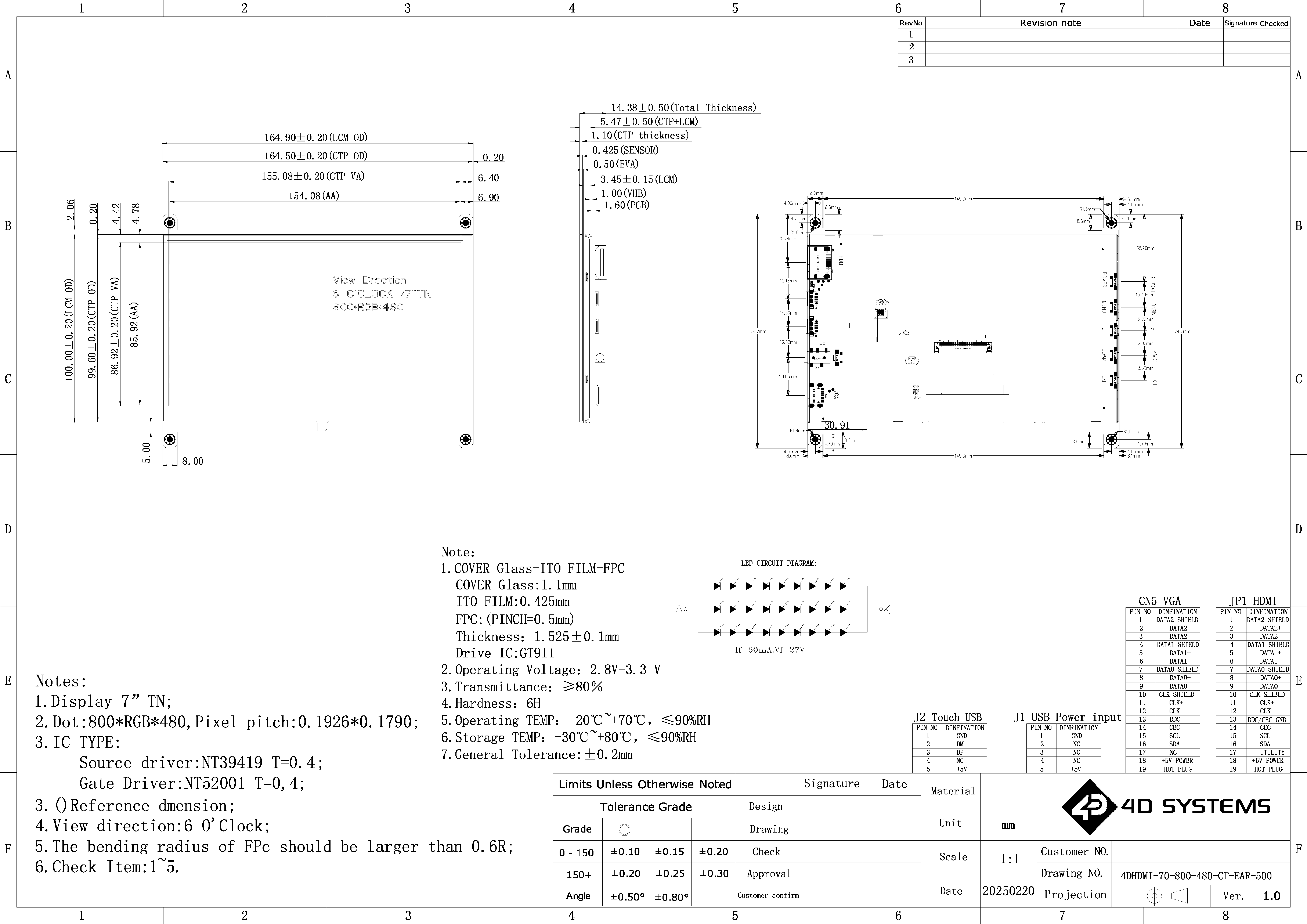

4DHDMI-70-800-480-CT-EAR-500
- 7.0" Rectangular Display, TN
- 800 x 480 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Air Bonded to LCD.
- PCB Mounting Tabs
- 500 cd/m2 brightness, Adjustable via OSD Menu
- Full-size HDMI Display Interface (19-pin), HDMI 1.4
- Mini-HDMI connector (19-pin) for Analog VGA Input Display Interface
- micro-USB Power, and micro-USB Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal FFC connector
- Power / Menu / Up / Down / Exit Buttons for OSD Menu
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | - | 780 | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 500:1 | - | - |
Product Photo

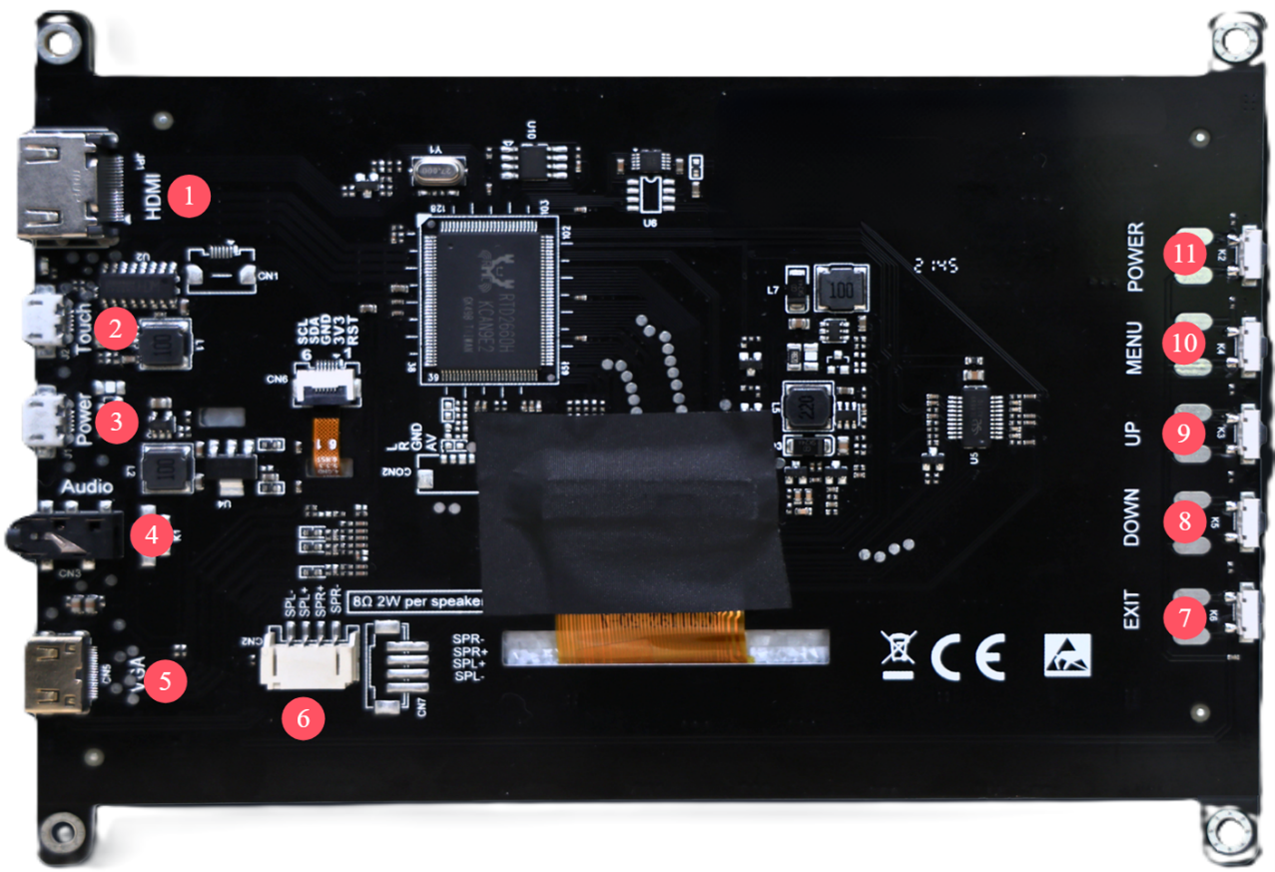

Product Connections
| No. | Function |
|---|---|
| 1 | Standard HDMI display interface (19-pin), HDMI 1.4 - See Note 2 |
| 2 | 5V power & USB touch interface (micro USB) |
| 3 | 5V power interface (micro USB) |
| 4 | 3.5mm TRS Audio Output Interface (Headphones/Speaker) |
| 5 | mini-HDMI Connector for Analog VGA input (19-pin) - See Note 1 |
| 6 | Speaker Interface - 4-pin 2.0mm |
| 7 | EXIT Button - for OSD Menu |
| 8 | DOWN Button - for OSD Menu |
| 9 | UP Button - for OSD Menu |
| 10 | MENU Button - for OSD Menu |
| 11 | POWER Button |
Note 1
- Type: MINI HDMI Connector
- Purpose: Although this is a MINI HDMI connector, it is specifically designed to carry VGA (analog) video signals rather than HDMI (digital) signals.
- Description: A compact connector typically used for HDMI digital interfaces, repurposed here for VGA signal transmission to facilitate compatibility with existing infrastructure or due to space constraints.
- Pin Configuration: 19-pin MINI HDMI connector
- Signal Type: Analog VGA signal
- VGA cable only available on request, not supplied as standard
Note 2
- Type: Standard HDMI Connector
- Version: HDMI 1.4
- Description: Our 7.0-inch display is equipped with a Standard HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Type A connector
- Supported Resolution: Native resolution of 800x480 pixels, with compatibility up to 1080p for video sources
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-70-800-480-NT-EAR-500
- Details Coming Soon...

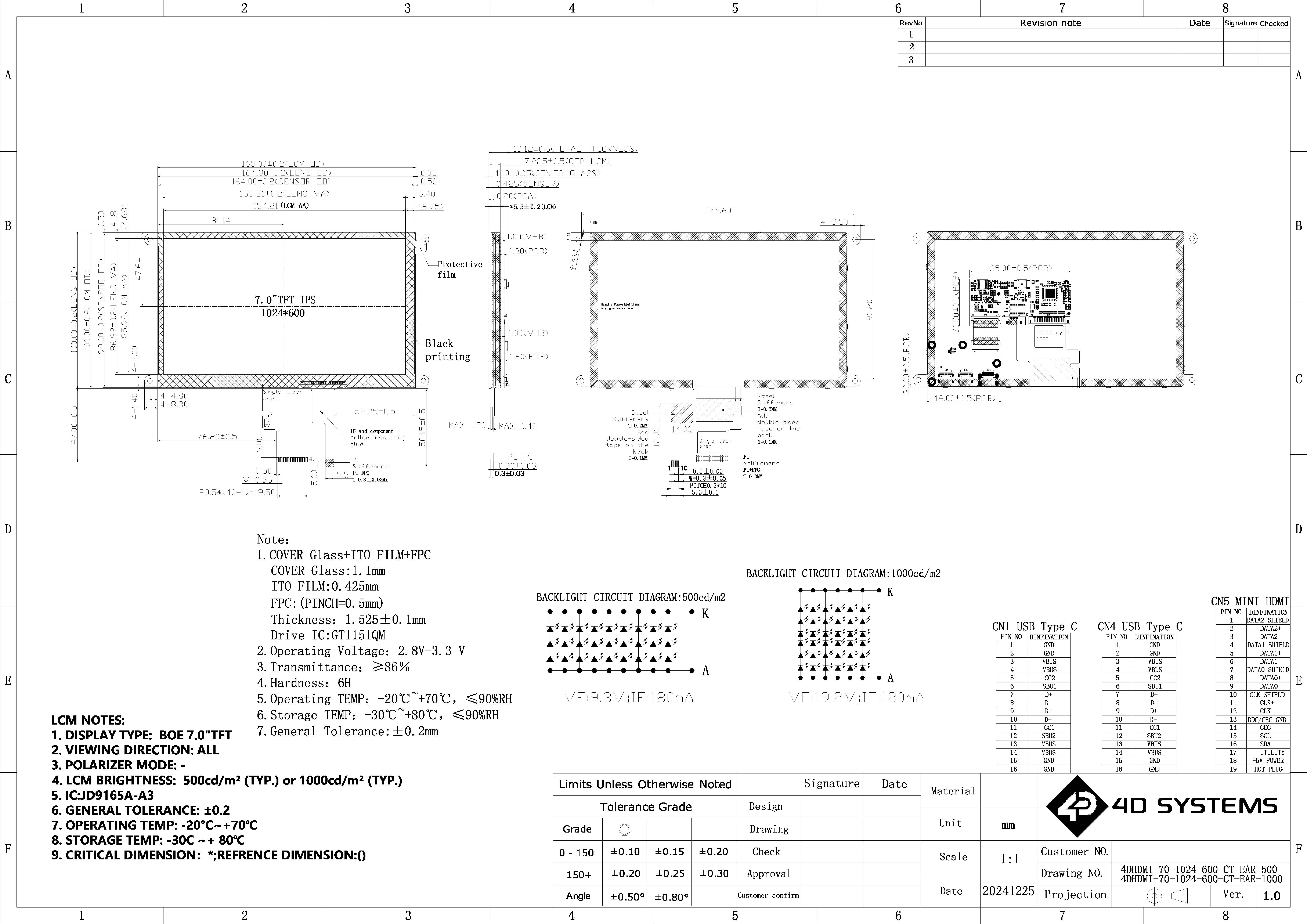

4DHDMI-70-1024-600-CT-EAR-500
- 7.0" Rectangular Display, IPS
- 1024 x 600 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 500 cd/m2 brightness, Adjustable via push button on main PCBA
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power, and USB-C Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | - | 430 | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |
Product Photo

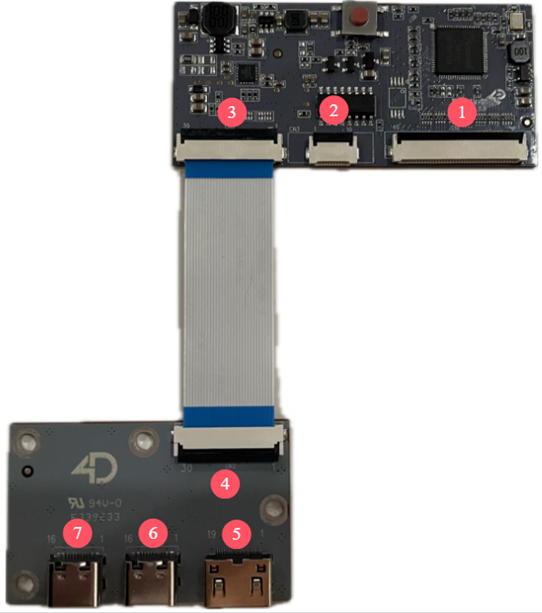

Product Connections
| No. | Function |
|---|---|
| 1 | 40-pin LCD Display interface |
| 2 | 10-pin LCD Display Touch interface |
| 3 | 30-pin Board-Board Interface |
| 4 | 30-pin Board-Board Interface |
| 5 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 6 | 5V power & USB touch interface (Standard 16Pin Type-C) |
| 7 | 5V power & USB touch interface (Standard 16Pin Type-C) |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 7.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-70-1024-600-CT-EAR-1000
- 7.0" Rectangular Display, IPS
- 1024 x 600 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 1000 cd/m2 brightness, Adjustable via push button on main PCBA
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power, and USB-C Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | - | 790 | - | mA |
| Brightness | - | - | 1000 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |
Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | 40-pin LCD Display interface |
| 2 | 10-pin LCD Display Touch interface |
| 3 | 30-pin Board-Board Interface |
| 4 | 30-pin Board-Board Interface |
| 5 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 6 | 5V power & USB touch interface (Standard 16Pin Type-C) |
| 7 | 5V power & USB touch interface (Standard 16Pin Type-C) |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 7.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-70-1024-600-NT-EAR-500
- Details Coming Soon...
4DHDMI-70-1024-600-NT-EAR-1000
- Details Coming Soon...

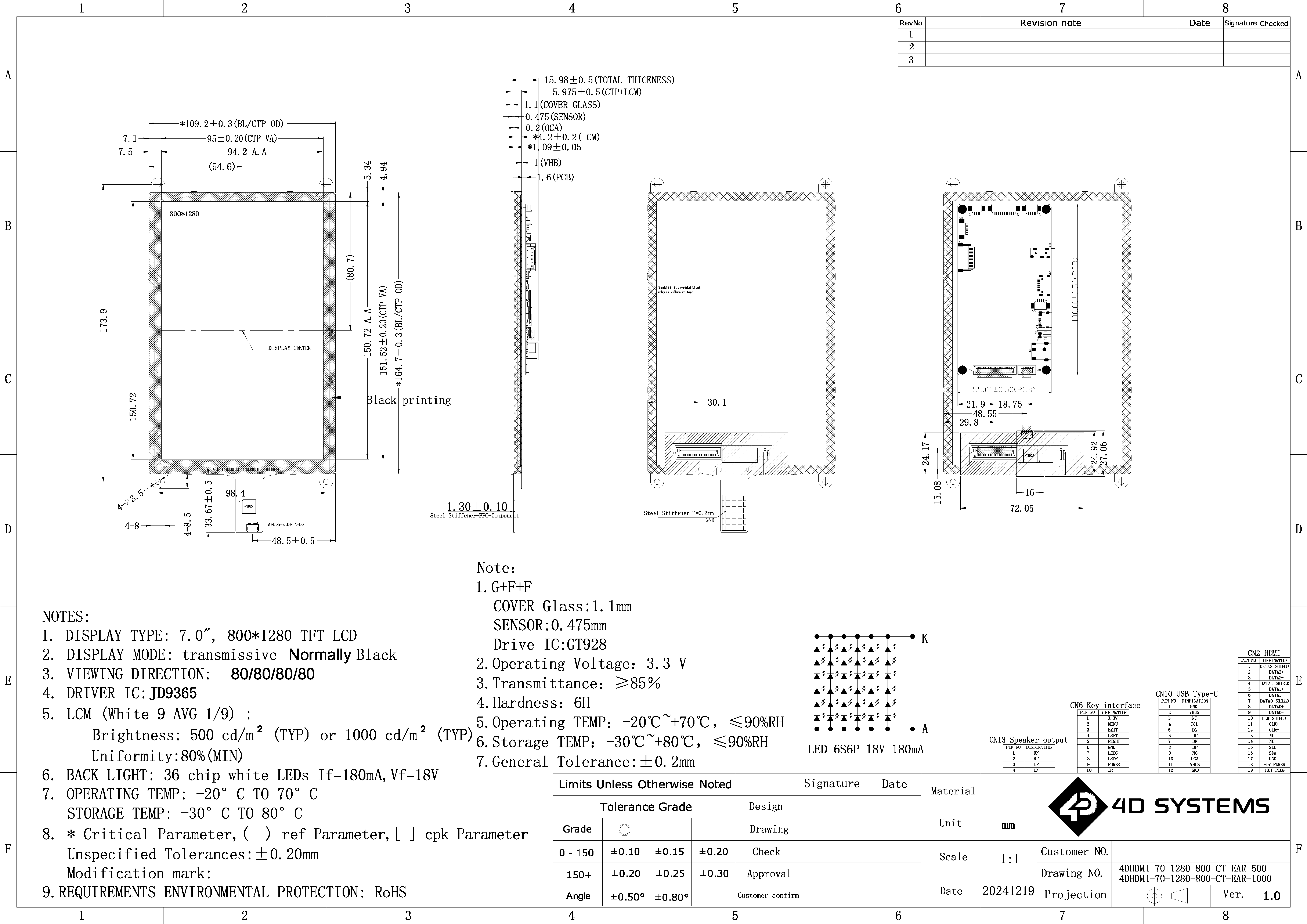

4DHDMI-70-1280-800-CT-EAR-500
- 7.0" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 500 cd/m2 brightness, Adjustable via OSD Menu
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power and Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal connector, 4ohm 3W Stereo
- Button Interface port for OSD, for external button board (available on request)
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (USB) | V | 4.8 | 5.0 | 5.2 | Volts DC |
| Operating Current (USB) | I | - | 1300 | - | mA |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | 540 | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |

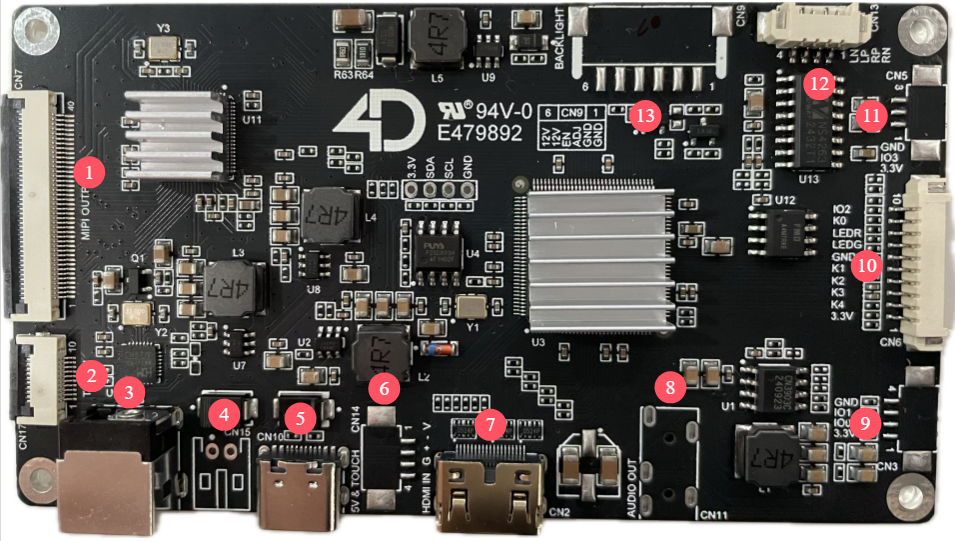

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface |
| 2 | LCD Display Touch interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) |
| 4 | Reserved interface |
| 5 | 5V power & USB touch interface (Standard 16-pin Type-C) |
| 6 | Reserved interface |
| 7 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 8 | 3.5mm TRS Analog Audio Output |
| 9 | Reserved interface |
| 10 | Button board interface for OSD Menu 10-pin 2.0mm |
| 11 | Reserved interface |
| 12 | Speaker interface 4-pin 1.25mm |
| 13 | Reserved interface |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 7.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification

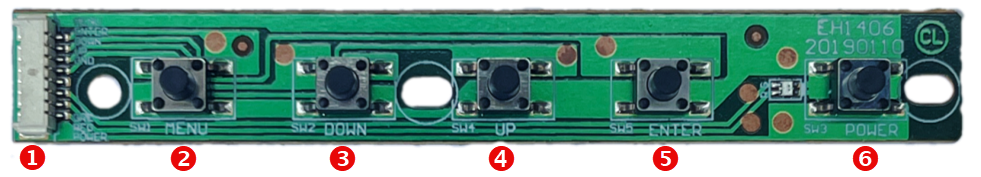

Button Board Connections
| No. | Function |
|---|---|
| 1 | Interface to product board 10-pin 2.0mm |
| 2 | Menu Button - OSD Menu |
| 3 | Down Button - OSD Menu |
| 4 | Up Button - OSD Menu |
| 5 | Enter Button - OSD Menu |
| 6 | Power Button |
4DHDMI-70-1280-800-CT-EAR-1000
- 7.0" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 1000 cd/m2 brightness, Adjustable via OSD Menu
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power and Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal connector, 4ohm 3W Stereo
- Button Interface port for OSD, for external button board (available on request)
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (USB) | V | 4.8 | 5.0 | 5.2 | Volts DC |
| Operating Current (USB) | I | - | 1300 | - | mA |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | 540 | - | mA |
| Brightness | - | - | 1000 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |

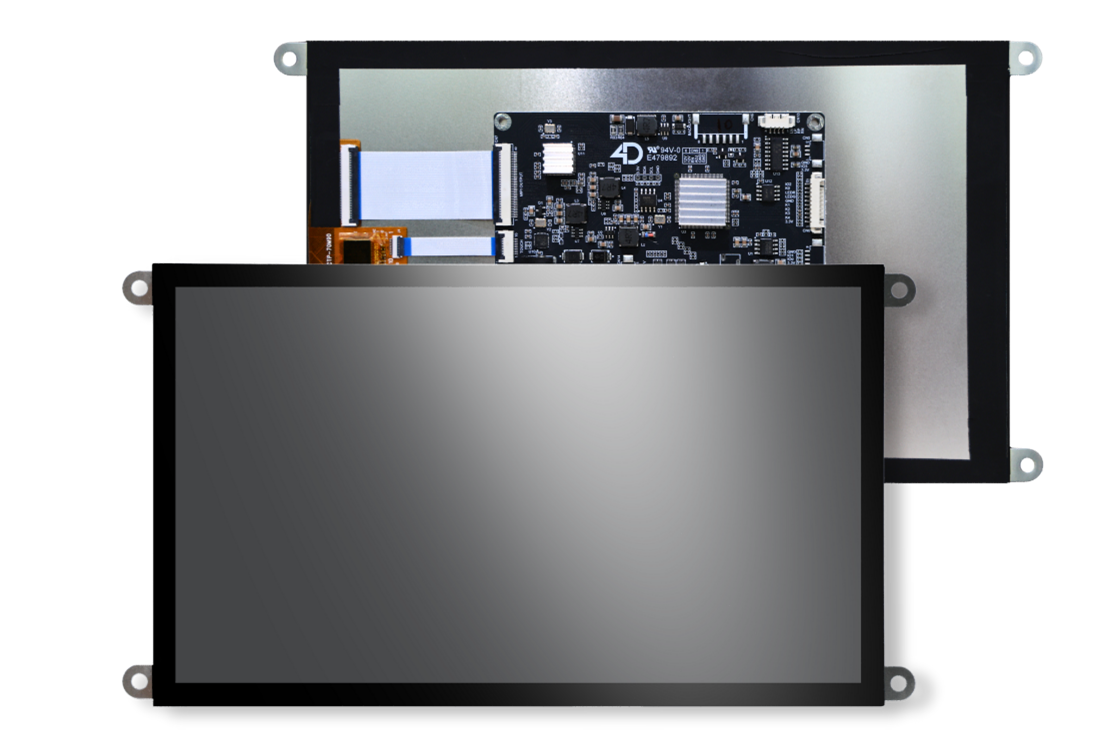

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface |
| 2 | LCD Display Touch interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) |
| 4 | Reserved interface |
| 5 | 5V power & USB touch interface (Standard 16-pin Type-C) |
| 6 | Reserved interface |
| 7 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 8 | 3.5mm TRS Analog Audio Output |
| 9 | Reserved interface |
| 10 | Button board interface for OSD Menu 10-pin 2.0mm |
| 11 | Reserved interface |
| 12 | Speaker interface 4-pin 1.25mm |
| 13 | Reserved interface |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 7.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
Button Board Connections
| No. | Function |
|---|---|
| 1 | Interface to product board 10-pin 2.0mm |
| 2 | Menu Button - OSD Menu |
| 3 | Down Button - OSD Menu |
| 4 | Up Button - OSD Menu |
| 5 | Enter Button - OSD Menu |
| 6 | Power Button |
4DHDMI-70-1280-800-NT-EAR-500
- Details Coming Soon...
4DHDMI-70-1280-800-NT-EAR-1000
- Details Coming Soon...

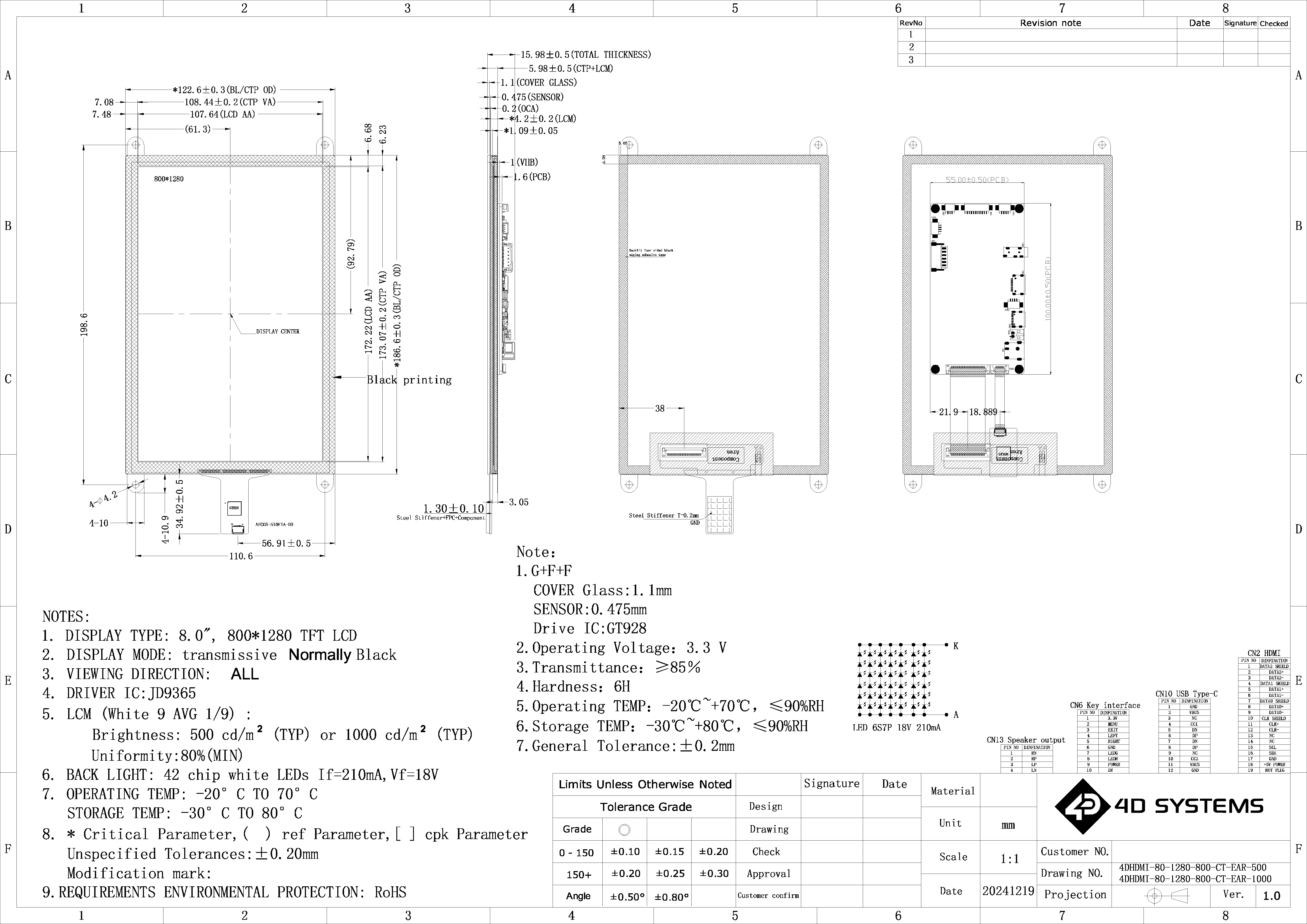

4DHDMI-80-1280-800-CT-EAR-500
- 8.0" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 500 cd/m2 brightness, Adjustable via OSD Menu
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power and Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal connector, 4ohm 3W Stereo
- Button Interface port for OSD, for external button board (available on request)
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (USB) | V | 4.8 | 5.0 | 5.2 | Volts DC |
| Operating Current (USB) | I | - | TBA | - | mA |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | TBA | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 1500:1 | - | - |

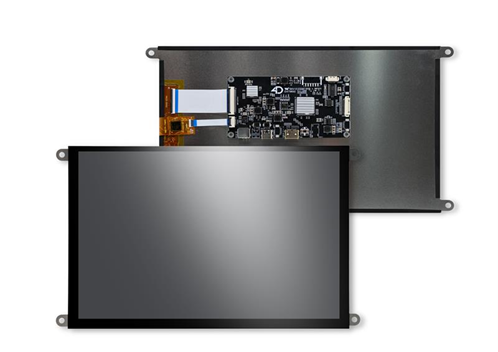

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface |
| 2 | LCD Display Touch interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) |
| 4 | Reserved interface |
| 5 | 5V power & USB touch interface (Standard 16-pin Type-C) |
| 6 | Reserved interface |
| 7 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 8 | 3.5mm Analog Audio Output |
| 9 | Reserved interface |
| 10 | Button board interface for OSD Menu |
| 11 | Reserved interface |
| 12 | Speaker interface 4pin 1.25mm |
| 13 | Reserved interface |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 8.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
Button Board Connections
| No. | Function |
|---|---|
| 1 | Interface to product board 10-pin 2.0mm |
| 2 | Menu Button - OSD Menu |
| 3 | Down Button - OSD Menu |
| 4 | Up Button - OSD Menu |
| 5 | Enter Button - OSD Menu |
| 6 | Power Button |
4DHDMI-80-1280-800-CT-EAR-1000
- 8.0" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 1000 cd/m2 brightness, Adjustable via OSD Menu
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power and Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal connector, 4ohm 3W Stereo
- Button Interface port for OSD, for external button board (available on request)
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (USB) | V | 4.8 | 5.0 | 5.2 | Volts DC |
| Operating Current (USB) | I | - | 1500 | - | mA |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | 580 | - | mA |
| Brightness | - | - | 1000 | - | cd/m2 |
| Contrast Ratio | - | - | 1500:1 | - | - |
Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface |
| 2 | LCD Display Touch interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) |
| 4 | Reserved interface |
| 5 | 5V power & USB touch interface (Standard 16-pin Type-C) |
| 6 | Reserved interface |
| 7 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 8 | 3.5mm Analog Audio Output |
| 9 | Reserved interface |
| 10 | Button board interface for OSD Menu |
| 11 | Reserved interface |
| 12 | Speaker interface 4pin 1.25mm |
| 13 | Reserved interface |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 8.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
Button Board Connections
| No. | Function |
|---|---|
| 1 | Interface to product board 10-pin 2.0mm |
| 2 | Menu Button - OSD Menu |
| 3 | Down Button - OSD Menu |
| 4 | Up Button - OSD Menu |
| 5 | Enter Button - OSD Menu |
| 6 | Power Button |
4DHDMI-80-1280-800-CT-NM-500
- Details Coming Soon...
4DHDMI-80-1280-800-CT-NM-1000
- Details Coming Soon...
4DHDMI-80-1280-800-CT-CLB-500
- Details Coming Soon...
4DHDMI-80-1280-800-CT-CLB-1000
- Details Coming Soon...
4DHDMI-80-1280-800-NT-EAR-500
- Details Coming Soon...
4DHDMI-80-1280-800-NT-EAR-1000
- Details Coming Soon...
4DHDMI-80-1280-800-NT-NM-500
- Details Coming Soon...
4DHDMI-80-1280-800-NT-NM-1000
- Details Coming Soon...

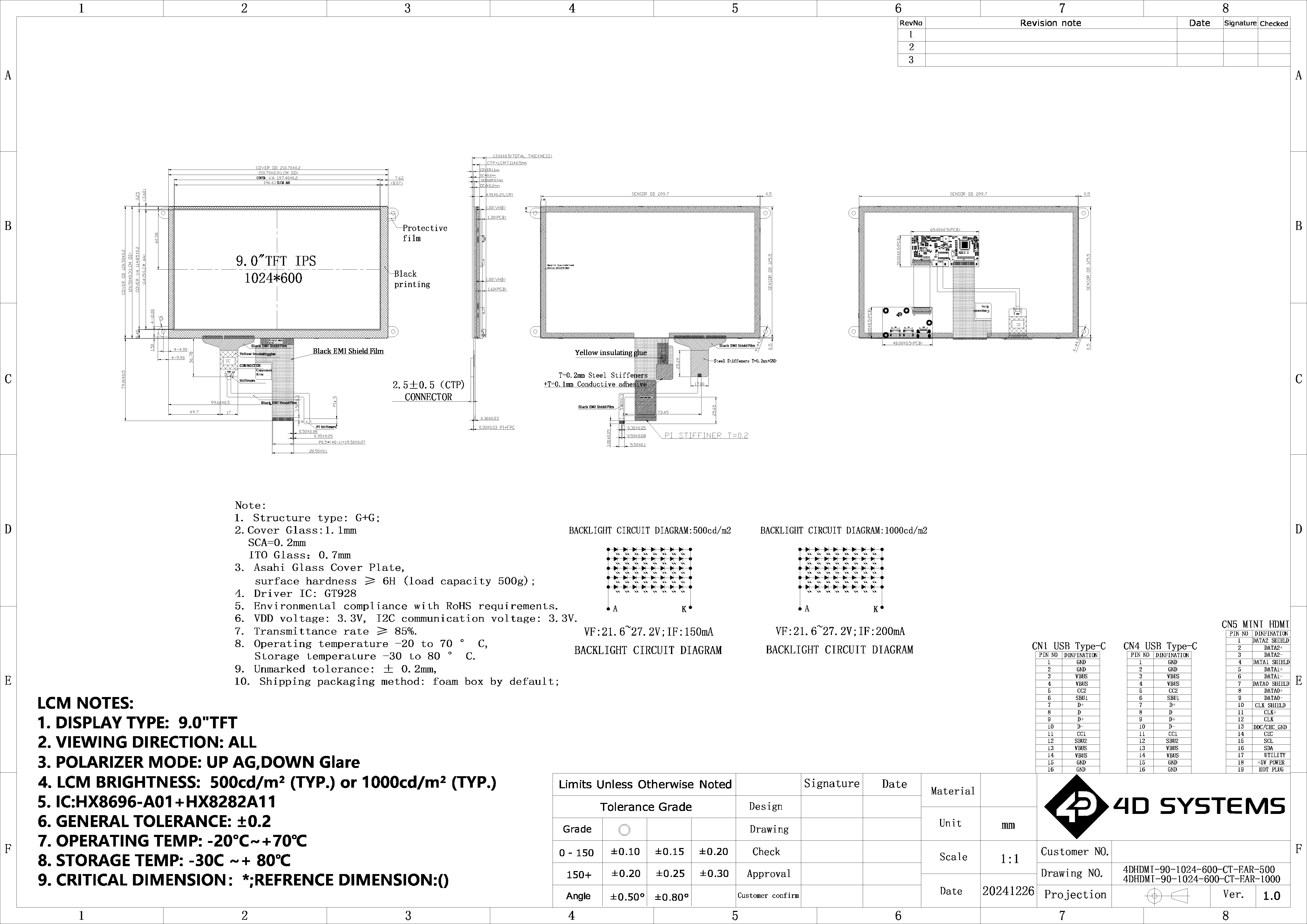

4DHDMI-90-1024-600-CT-EAR-500
- 9.0" Rectangular Display, IPS
- 1024 x 600 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 500 cd/m2 brightness, Adjustable via push button on main PCBA
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power, and USB-C Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | - | 1000 | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |

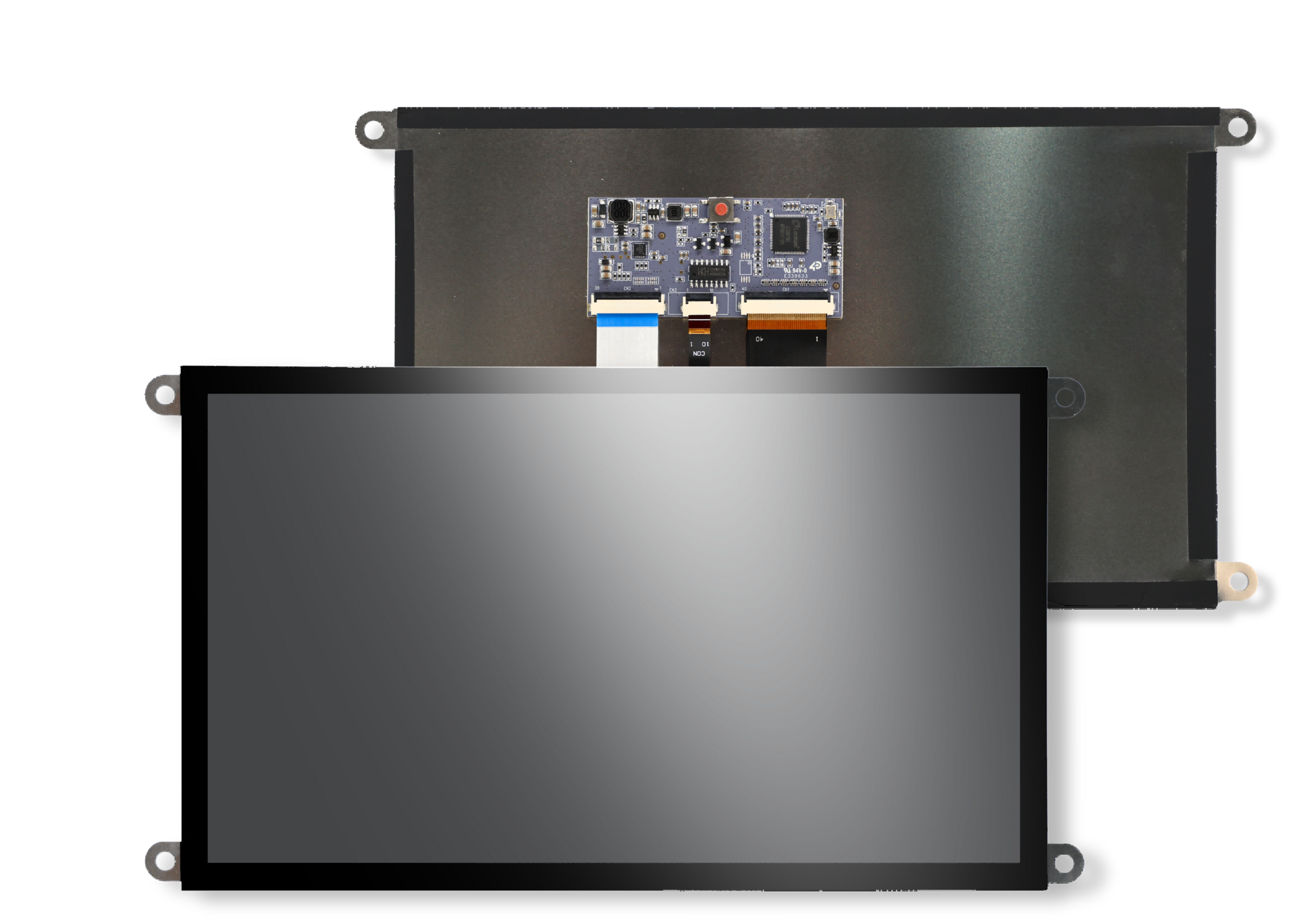

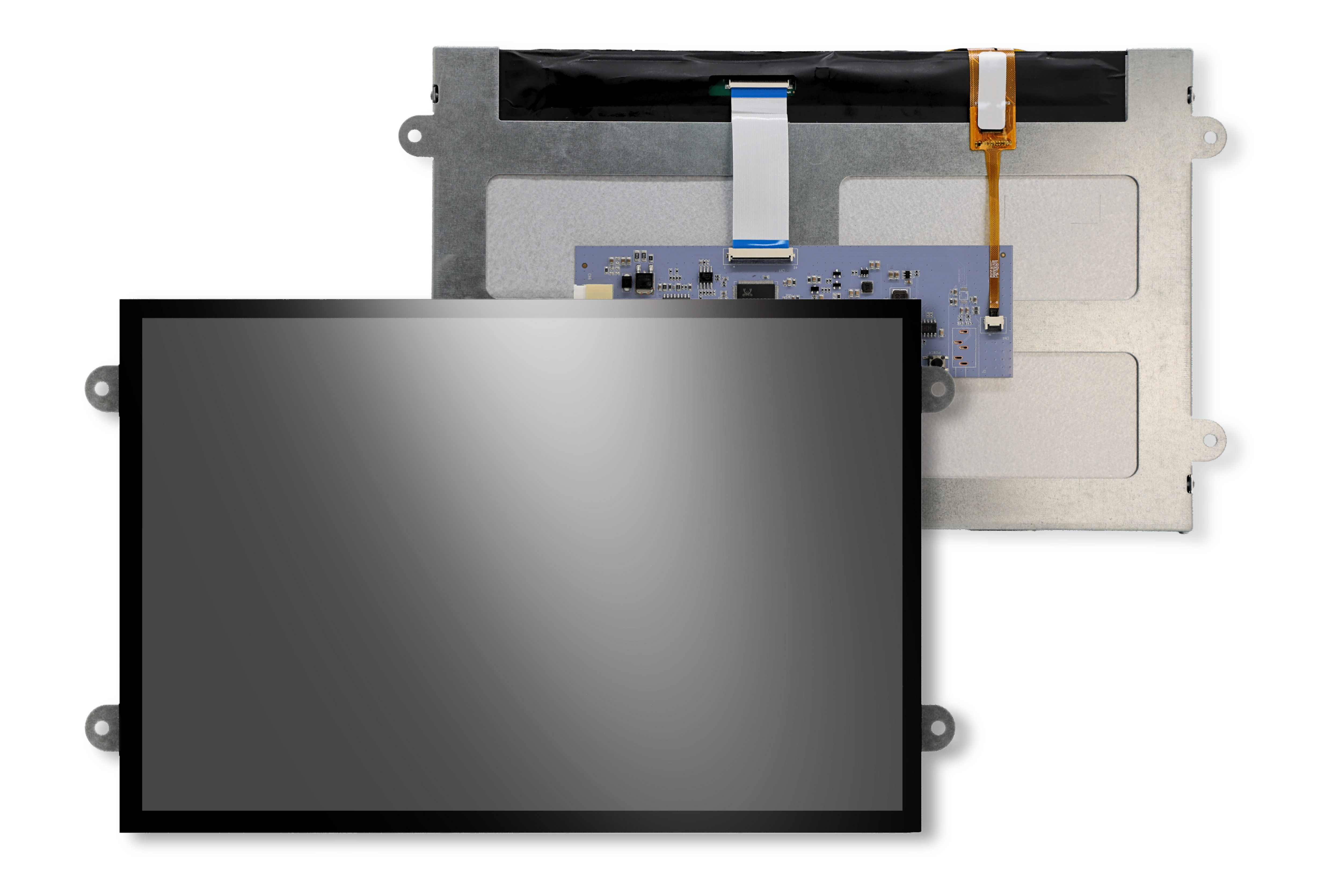

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | 40-pin LCD Display interface |
| 2 | 10-pin LCD Display Touch interface |
| 3 | 30-pin Board-Board Interface |
| 4 | 30-pin Board-Board Interface |
| 5 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 6 | 5V power interface (Standard 16Pin Type-C) |
| 7 | 5V power interface (Standard 16Pin Type-C) |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 9.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-90-1024-600-CT-EAR-1000
- 9.0" Rectangular Display, IPS
- 1024 x 600 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 1000 cd/m2 brightness, Adjustable via push button on main PCBA
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power, and USB-C Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | - | 1300 | - | mA |
| Brightness | - | - | 1000 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |

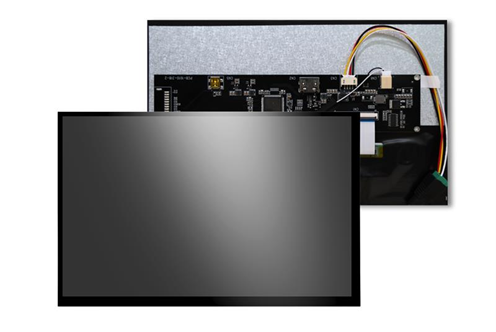

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | 40-pin LCD Display interface |
| 2 | 10-pin LCD Display Touch interface |
| 3 | 30-pin Board-Board Interface |
| 4 | 30-pin Board-Board Interface |
| 5 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 6 | 5V power interface (Standard 16Pin Type-C) |
| 7 | 5V power interface (Standard 16Pin Type-C) |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 9.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-90-1024-600-CT-NM-500
- Details Coming Soon...
4DHDMI-90-1024-600-CT-NM-1000
- Details Coming Soon...
4DHDMI-90-1024-600-CT-CLB-500
- Details Coming Soon...
4DHDMI-90-1024-600-CT-CLB-1000
- Details Coming Soon...
4DHDMI-90-1024-600-NT-EAR-500
- Details Coming Soon...
4DHDMI-90-1024-600-NT-EAR-1000
- Details Coming Soon...
4DHDMI-90-1024-600-NT-NM-500
- Details Coming Soon...
4DHDMI-90-1024-600-NT-NM-1000
- Details Coming Soon...

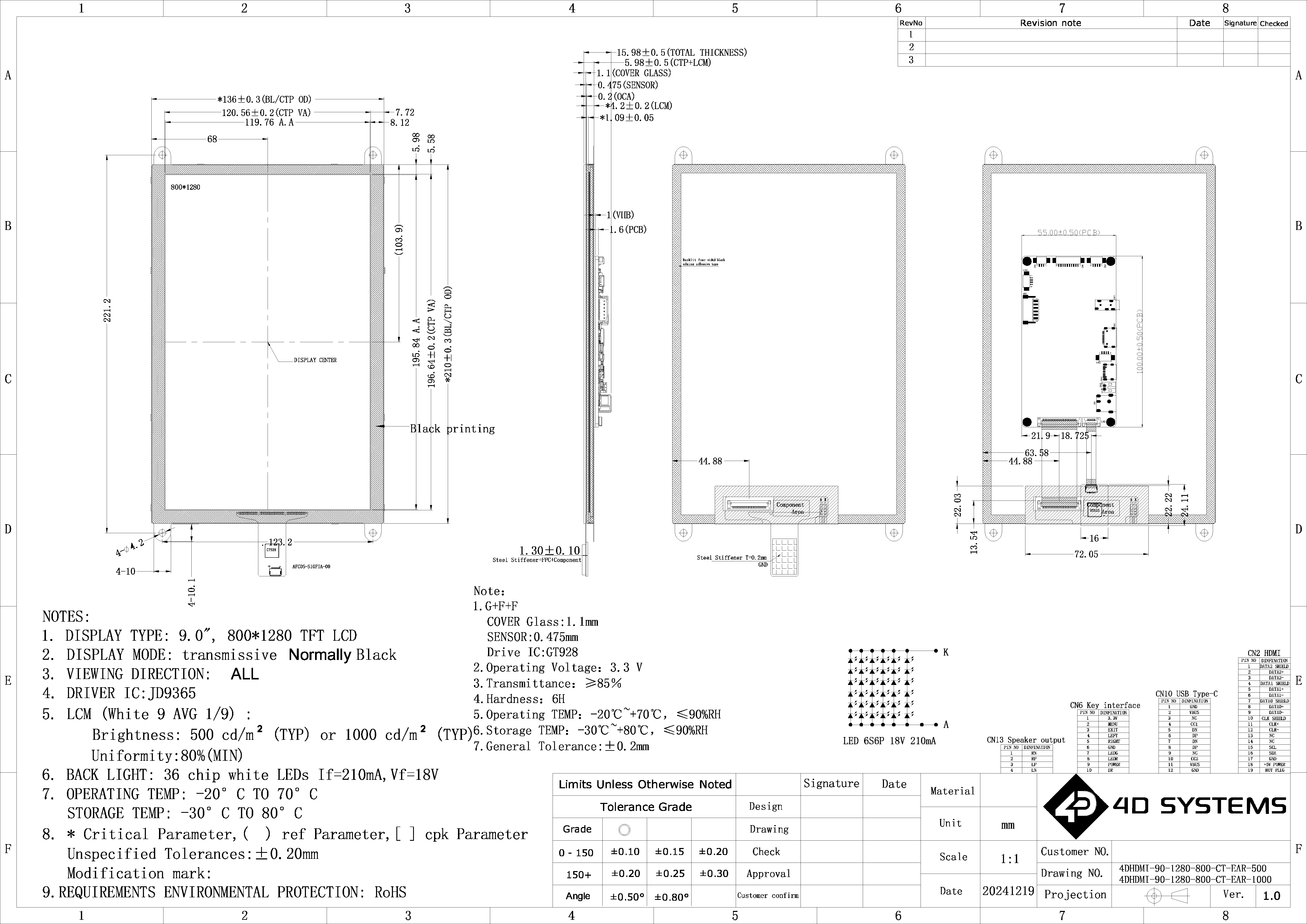

4DHDMI-90-1280-800-CT-EAR-500
- 9.0" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 500 cd/m2 brightness, Adjustable via OSD Menu
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power and Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal connector, 4ohm 3W Stereo
- Button Interface port for OSD, for external button board (available on request)
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (USB) | V | 4.8 | 5.0 | 5.2 | Volts DC |
| Operating Current (USB) | I | - | TBA | - | mA |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | TBA | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 1000:1 | - | - |
Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface |
| 2 | LCD Display Touch interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) |
| 4 | Reserved interface |
| 5 | 5V power & USB touch interface (Standard 16-pin Type-C) |
| 6 | Reserved interface |
| 7 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 8 | 3.5mm Analog Audio Output |
| 9 | Reserved interface |
| 10 | Button board interface for OSD Menu |
| 11 | Reserved interface |
| 12 | Speaker interface 4pin 1.25mm |
| 13 | Reserved interface |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 8.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
Button Board Connections
| No. | Function |
|---|---|
| 1 | Interface to product board 10-pin 2.0mm |
| 2 | Menu Button - OSD Menu |
| 3 | Down Button - OSD Menu |
| 4 | Up Button - OSD Menu |
| 5 | Enter Button - OSD Menu |
| 6 | Power Button |
4DHDMI-90-1280-800-CT-EAR-1000
- 9.0" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 1000 cd/m2 brightness, Adjustable via OSD Menu
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power and Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal connector, 4ohm 3W Stereo
- Button Interface port for OSD, for external button board (available on request)
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (USB) | V | 4.8 | 5.0 | 5.2 | Volts DC |
| Operating Current (USB) | I | - | TBA | - | mA |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | TBA | - | mA |
| Brightness | - | - | 1000 | - | cd/m2 |
| Contrast Ratio | - | - | 1000:1 | - | - |

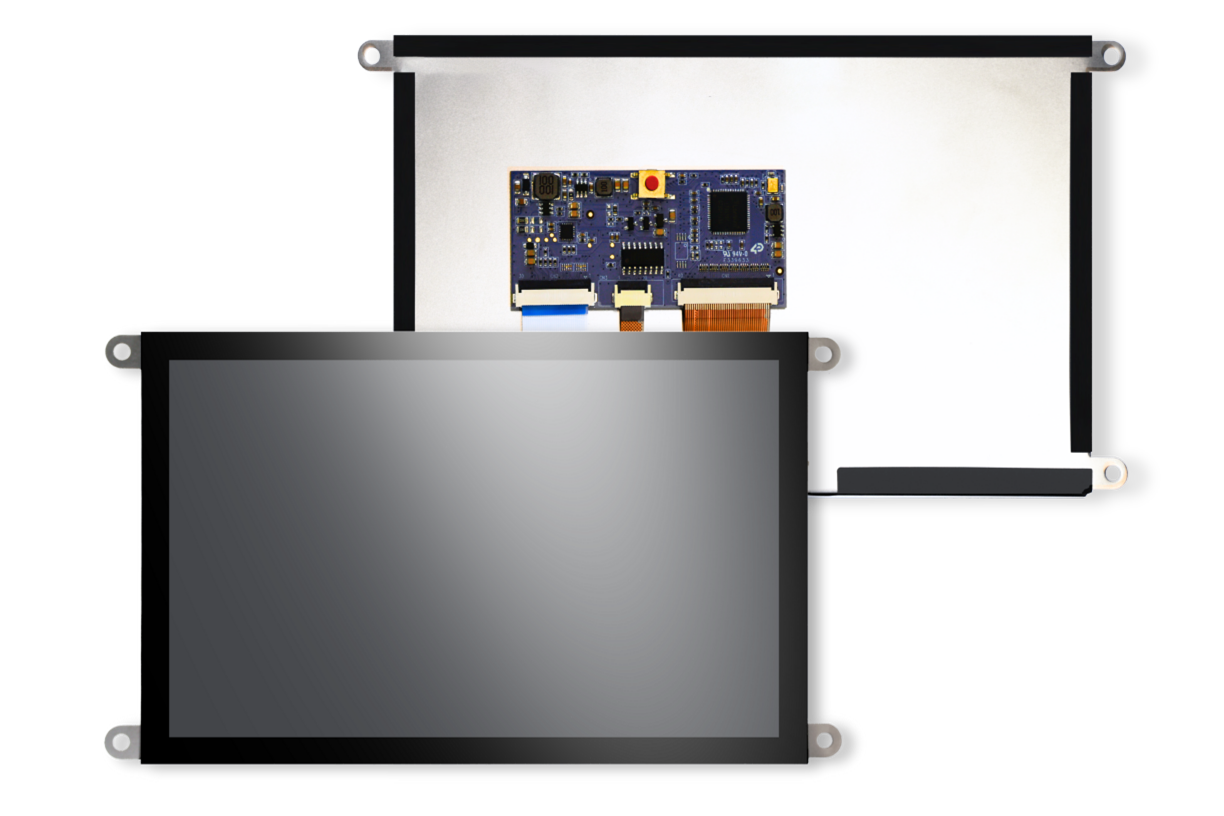

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface |
| 2 | LCD Display Touch interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) |
| 4 | Reserved interface |
| 5 | 5V power & USB touch interface (Standard 16-pin Type-C) |
| 6 | Reserved interface |
| 7 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 8 | 3.5mm Analog Audio Output |
| 9 | Reserved interface |
| 10 | Button board interface for OSD Menu |
| 11 | Reserved interface |
| 12 | Speaker interface 4pin 1.25mm |
| 13 | Reserved interface |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 8.0-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
Button Board Connections
| No. | Function |
|---|---|
| 1 | Interface to product board 10-pin 2.0mm |
| 2 | Menu Button - OSD Menu |
| 3 | Down Button - OSD Menu |
| 4 | Up Button - OSD Menu |
| 5 | Enter Button - OSD Menu |
| 6 | Power Button |
4DHDMI-90-1280-800-CT-NM-500
- Details Coming Soon...
4DHDMI-90-1280-800-CT-NM-1000
- Details Coming Soon...
4DHDMI-90-1280-800-CT-CLB-500
- Details Coming Soon...
4DHDMI-90-1280-800-CT-CLB-1000
- Details Coming Soon...
4DHDMI-90-1280-800-NT-EAR-500
- Details Coming Soon...
4DHDMI-90-1280-800-NT-EAR-1000
- Details Coming Soon...
4DHDMI-90-1280-800-NT-NM-500
- Details Coming Soon...
4DHDMI-90-1280-800-NT-NM-1000
- Details Coming Soon...

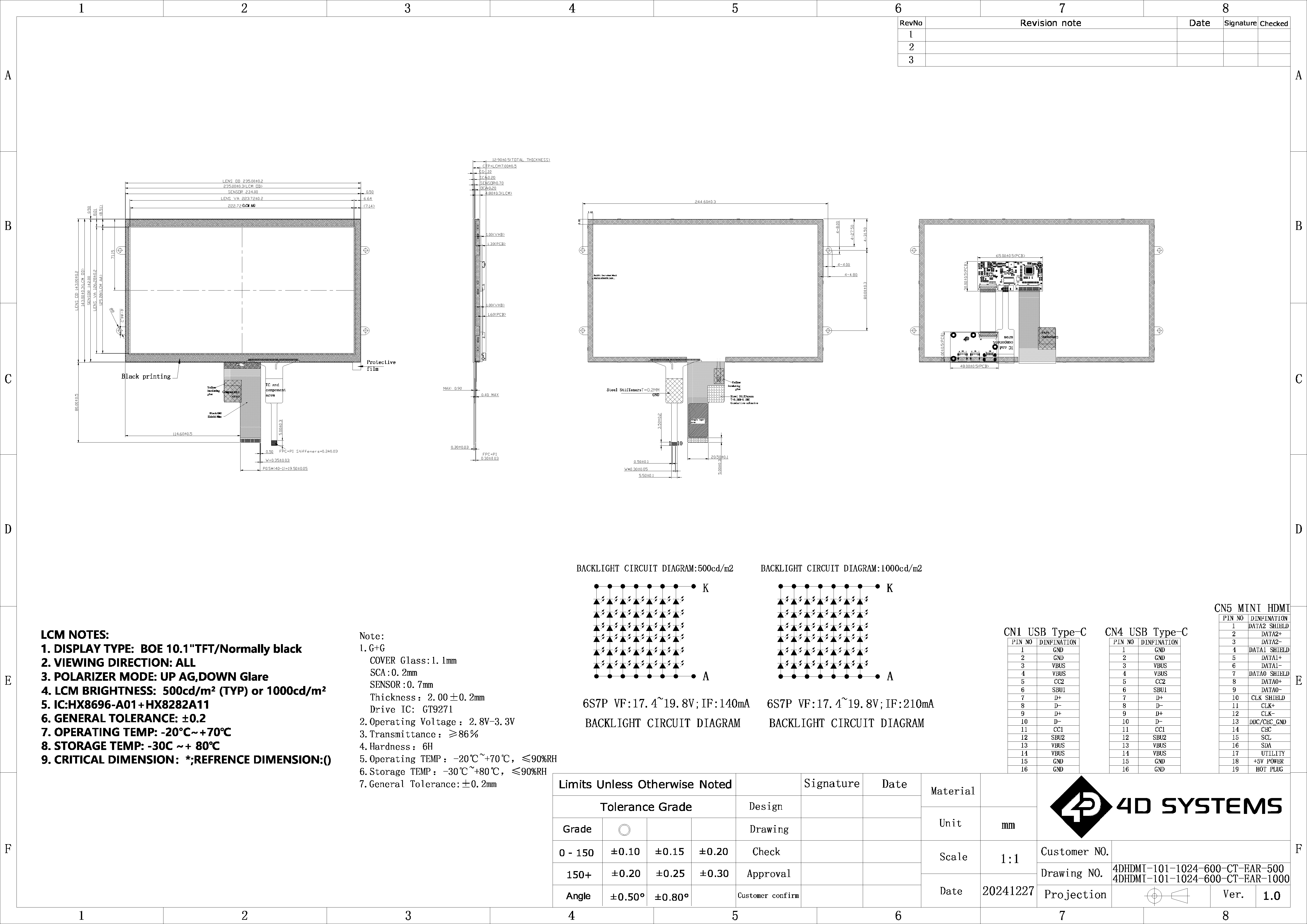

4DHDMI-101-1024-600-CT-EAR-500
- 10.1" Rectangular Display, IPS
- 1024 x 600 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 500 cd/m2 brightness, Adjustable via push button on main PCBA
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power, and USB-C Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | - | 770 | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |

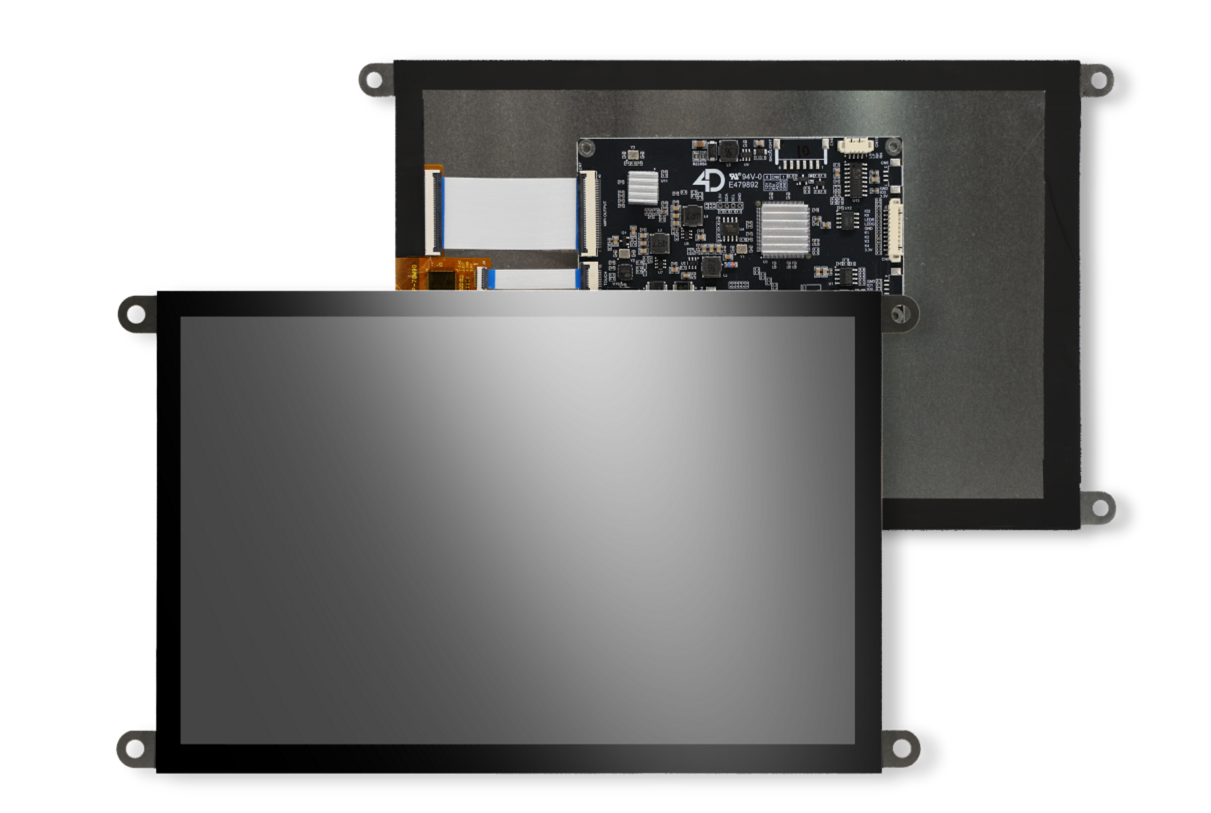

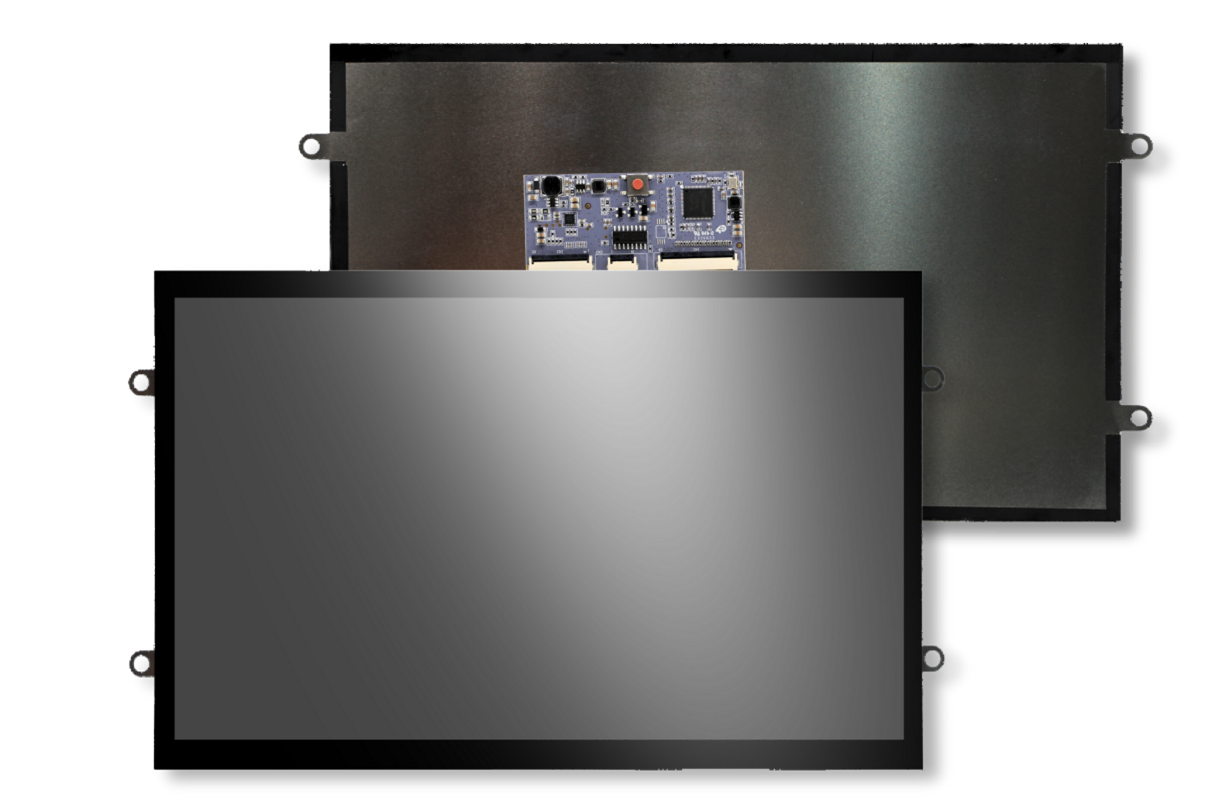

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | 40-pin LCD Display interface |
| 2 | 10-pin LCD Display Touch interface |
| 3 | 30-pin Board-Board Interface |
| 4 | 30-pin Board-Board Interface |
| 5 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 6 | 5V power & USB touch interface (Standard 16Pin Type-C) |
| 7 | 5V power & USB touch interface (Standard 16Pin Type-C) |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 10.1-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-101-1024-600-CT-EAR-1000
- 10.1" Rectangular Display, IPS
- 1024 x 600 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 1000 cd/m2 brightness, Adjustable via push button on main PCBA
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power, and USB-C Touch Interface. 5V/GND signals are common to both miro-USB connectors, however the Touch interface only goes to the micro-USB associated to Touch
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage | V | 4.8 | 5.0 | 5.2 | Volts |
| Operating Current | I | - | 1480 | - | mA |
| Brightness | - | - | 1000 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |

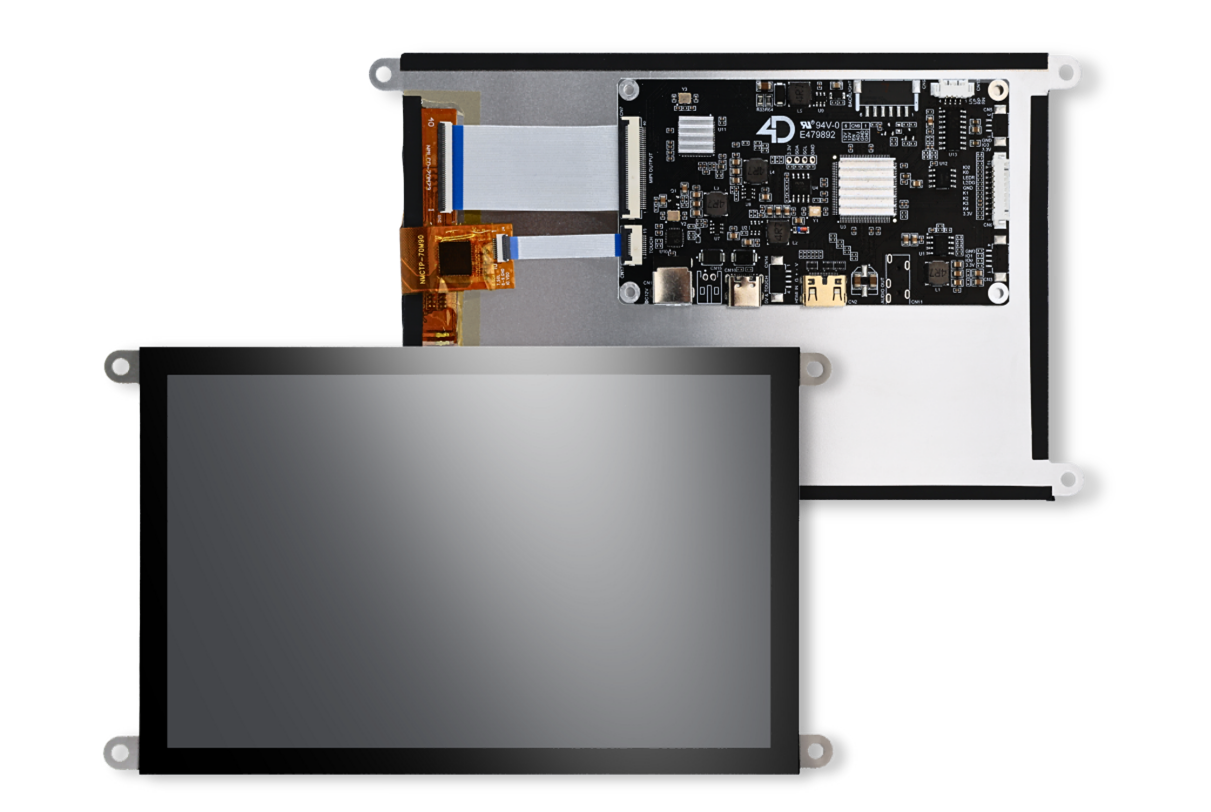

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | 40-pin LCD Display interface |
| 2 | 10-pin LCD Display Touch interface |
| 3 | 30-pin Board-Board Interface |
| 4 | 30-pin Board-Board Interface |
| 5 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 6 | 5V power & USB touch interface (Standard 16Pin Type-C) |
| 7 | 5V power & USB touch interface (Standard 16Pin Type-C) |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 10.1-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-101-1024-600-CT-NM-500
- Details Coming Soon...
4DHDMI-101-1024-600-CT-NM-1000
- Details Coming Soon...
4DHDMI-101-1024-600-CT-CLB-500
- Details Coming Soon...
4DHDMI-101-1024-600-CT-CLB-1000
- Details Coming Soon...
4DHDMI-101-1024-600-NT-EAR-500
- Details Coming Soon...
4DHDMI-101-1024-600-NT-EAR-1000
- Details Coming Soon...
4DHDMI-101-1024-600-NT-NM-500
- Details Coming Soon...
4DHDMI-101-1024-600-NT-NM-1000
- Details Coming Soon...
4DHDMI-101-1280-800-CT-NM-300(L)
- Details Coming Soon...
4DHDMI-101-1280-800-NT-NM-300(L)
- Details Coming Soon...

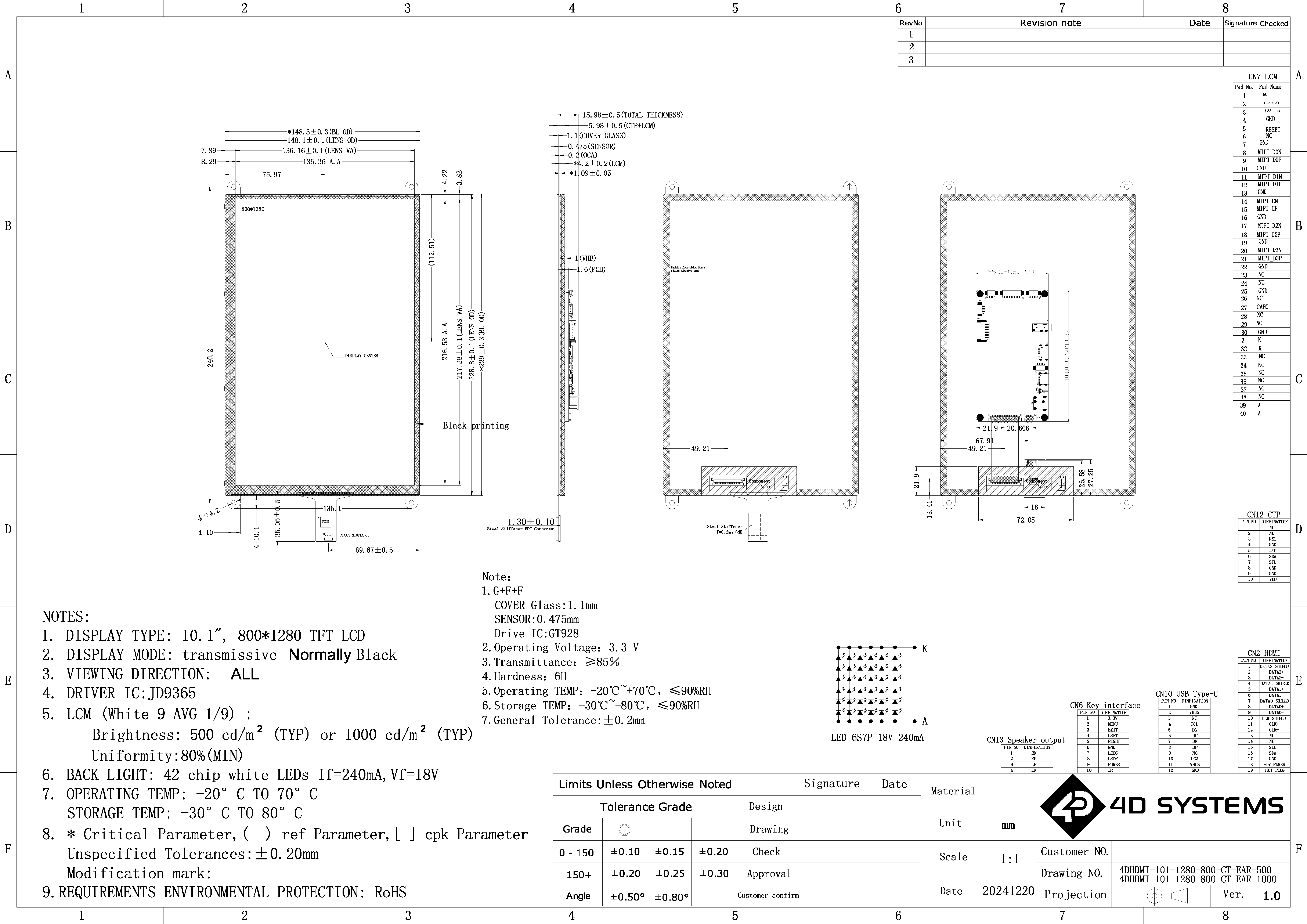

4DHDMI-101-1280-800-CT-EAR-500
- 10.1" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 500 cd/m2 brightness, Adjustable via OSD Menu
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power and Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal connector, 4ohm 3W Stereo
- Button Interface port for OSD, for external button board (available on request)
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (USB) | V | 4.8 | 5.0 | 5.2 | Volts DC |
| Operating Current (USB) | I | - | TBA | - | mA |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | TBA | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 1000:1 | - | - |
Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface |
| 2 | LCD Display Touch interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) |
| 4 | Reserved interface |
| 5 | 5V power & USB touch interface (Standard 16Pin Type-C) |
| 6 | Reserved interface |
| 7 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 8 | 3.5mm Analog Audio Output |
| 9 | Reserved interface |
| 10 | Button board interface for OSD Menu |
| 11 | Reserved interface |
| 12 | Speaker interface |
| 13 | Reserved interface |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 10.1-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-101-1280-800-CT-EAR-1000
- 10.1" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Optical Bonded to LCD.
- LCD Metal Mounting Tabs
- 1000 cd/m2 brightness, Adjustable via OSD Menu
- Mini-HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Power and Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 3.5mm TRS Analog Audio Jack for Audio Output, 20Hz-20KHz
- Speaker Interface 4-pin 2.0mm pitch horizontal connector, 4ohm 3W Stereo
- Button Interface port for OSD, for external button board (available on request)
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (USB) | V | 4.8 | 5.0 | 5.2 | Volts DC |
| Operating Current (USB) | I | - | 1700 | - | mA |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | 650 | - | mA |
| Brightness | - | - | 1000 | - | cd/m2 |
| Contrast Ratio | - | - | 1000:1 | - | - |
Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface |
| 2 | LCD Display Touch interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) |
| 4 | Reserved interface |
| 5 | 5V power & USB touch interface (Standard 16Pin Type-C) |
| 6 | Reserved interface |
| 7 | Mini-HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 8 | 3.5mm Analog Audio Output |
| 9 | Reserved interface |
| 10 | Button board interface for OSD Menu |
| 11 | Reserved interface |
| 12 | Speaker interface |
| 13 | Reserved interface |
Note 1
- Type: Mini HDMI Connector
- Version: HDMI 1.4
- Description: Our 10.1-inch display is equipped with a Mini HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Mini HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-101-1280-800-CT-NM-500
- Details Coming Soon...
4DHDMI-101-1280-800-CT-NM-1000
- Details Coming Soon...
4DHDMI-101-1280-800-CT-CLB-500
- Details Coming Soon...
4DHDMI-101-1280-800-CT-CLB-1000
- Details Coming Soon...
4DHDMI-101-1280-800-NT-EAR-500
- Details Coming Soon...
4DHDMI-101-1280-800-NT-EAR-1000
- Details Coming Soon...
4DHDMI-101-1280-800-NT-NM-500
- Details Coming Soon...
4DHDMI-101-1280-800-NT-NM-1000
- Details Coming Soon...

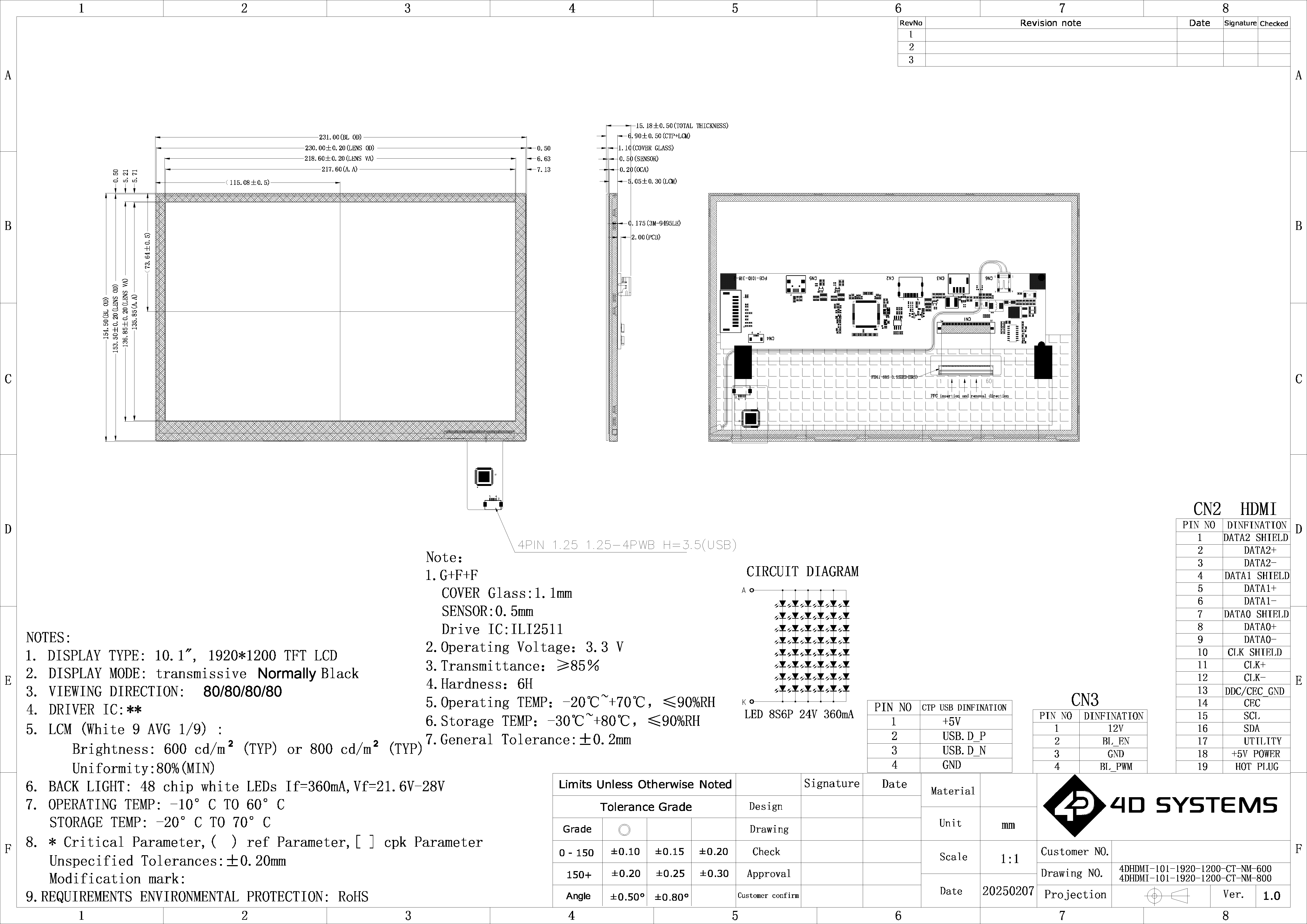

4DHDMI-101-1920-1200-CT-NM-600
- 10.1" Rectangular Display, IPS
- 1920 x 1200 Resolution
- Capacitive Touch
- No Mounting Solution, bare display only
- 600 cd/m2 brightness
- Standard HDMI Display Interface (19-pin), HDMI 1.4
- USB Touch interface via supplied cable
- 12V Power Input 5.5mm barrel Jack via supplied cable
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | TBA | - | mA |
| Brightness | - | - | 600 | - | cd/m2 |
| Contrast Ratio | - | - | 1500:1 | - | - |

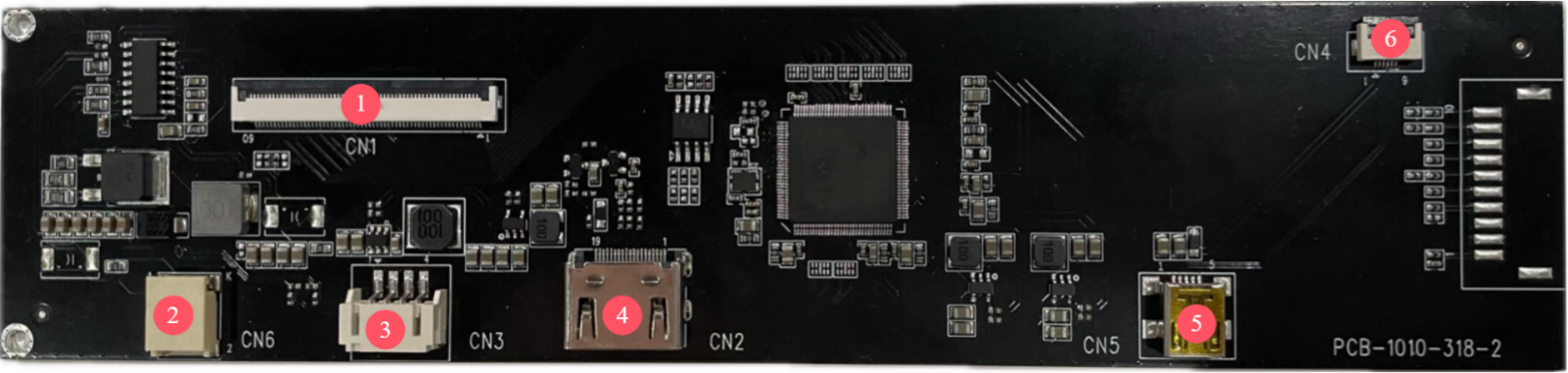

Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface 60-pin |
| 2 | LCD Backlight Interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) via supplied cable |
| 4 | Standard HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 5 | Reserved |
| 6 | Reserved |
Note 1
- Type: Standard HDMI Connector
- Version: HDMI 1.4
- Description: Our 10.1-inch display is equipped with a Standard HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Type A HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-101-1920-1200-CT-NM-800
- 10.1" Rectangular Display, IPS
- 1920 x 1200 Resolution
- Capacitive Touch
- No Mounting Solution, bare display only
- 800 cd/m2 brightness
- Standard HDMI Display Interface (19-pin), HDMI 1.4
- USB Touch interface via supplied cable
- 12V Power Input 5.5mm barrel Jack via supplied cable
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | 910 | - | mA |
| Brightness | - | - | 800 | - | cd/m2 |
| Contrast Ratio | - | - | 1500:1 | - | - |
Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Display interface 60-pin |
| 2 | LCD Backlight Interface |
| 3 | 12V barrel jack power input 5.5mm (Centre +) via supplied cable |
| 4 | Standard HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 5 | Reserved |
| 6 | Reserved |
Note 1
- Type: Standard HDMI Connector
- Version: HDMI 1.4
- Description: Our 10.1-inch display is equipped with a Standard HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Type A HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-101-1920-1200-NT-NM-600
- Details Coming Soon...
4DHDMI-101-1920-1200-NT-NM-800
- Details Coming Soon...
4DHDMI-121-1280-800-CT-NM-500
- Details Coming Soon...
4DHDMI-121-1280-800-CT-NM-850
- Details Coming Soon...

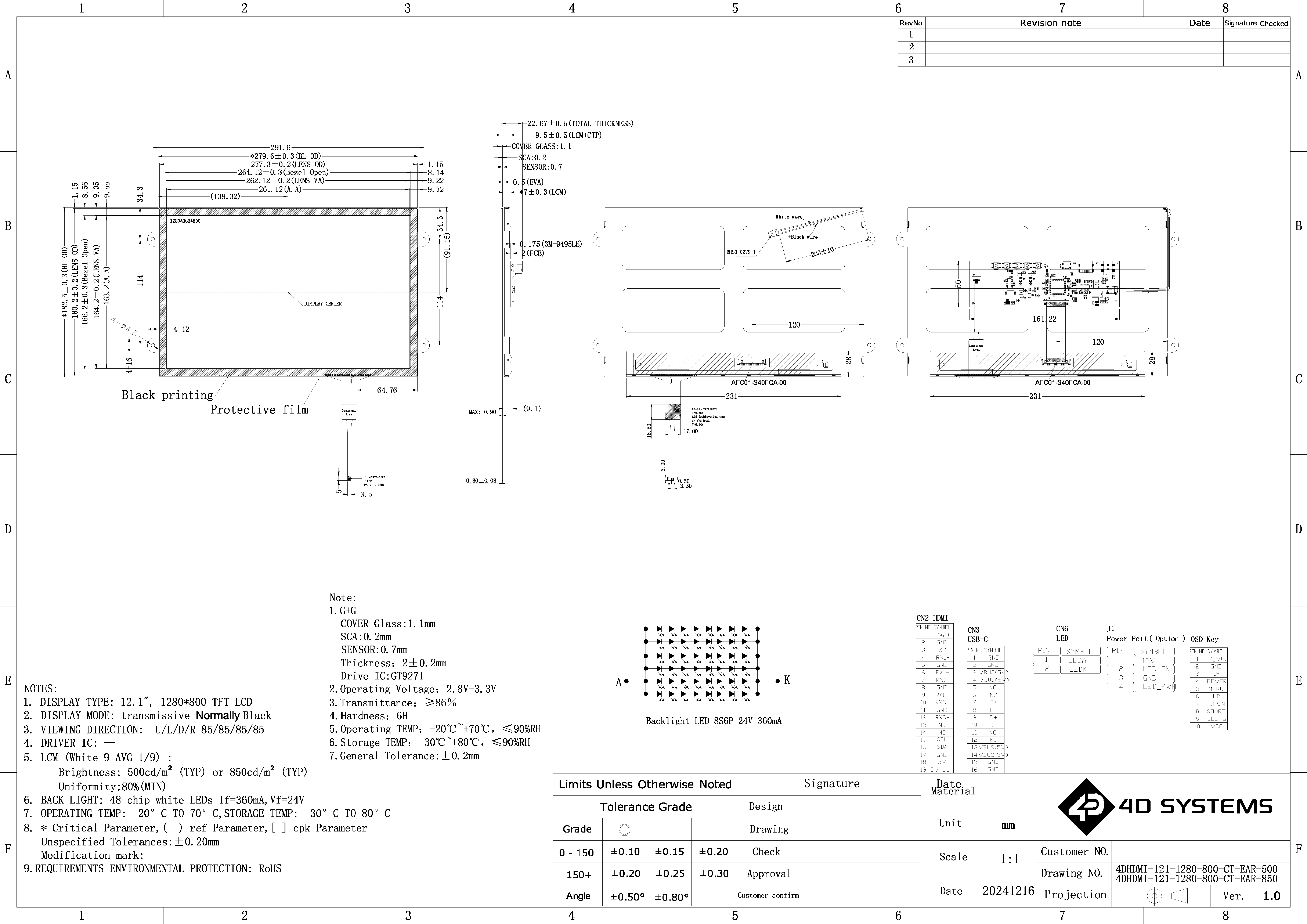

4DHDMI-121-1280-800-CT-EAR-500
- 12.1" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Air Bonded to LCD.
- LCD Metal Mounting Tabs
- 500 cd/m2 brightness, Adjustable via OSD Menu
- Full-size HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 5 Buttons for OSD Interface
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | TBA | - | mA |
| Brightness | - | - | 500 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |
Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Backlight interface |
| 2 | 12V barrel jack power input 5.5mm (Centre +) |
| 3 | Standard HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 4 | USB touch interface (Standard 16-pin Type-C) |
| 5 | Exit Button - OSD Menu |
| 6 | Down Button - OSD Menu |
| 7 | Up Button - OSD Menu |
| 8 | Menu Button - OSD Menu |
| 9 | Power Button |
| 10 | 3.5mm Analog Audio Output (Not fitted standard) |
| 11 | 6-pin LCD Display Touch interface |
| 12 | 40-pin LCD Display interface |
Note 1
- Type: Standard HDMI Connector
- Version: HDMI 1.4
- Description: Our 12.1-inch display is equipped with a Standard HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Type A HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-121-1280-800-CT-EAR-850
- 12.1" Rectangular Display, IPS
- 1280 x 800 Resolution
- Capacitive Touch, Glass 1:1 size of LCD. Air Bonded to LCD.
- LCD Metal Mounting Tabs
- 850 cd/m2 brightness, Adjustable via OSD Menu
- Full-size HDMI Display Interface (19-pin), HDMI 1.4
- USB-C Touch Interface
- 12V Power Input 5.5mm barrel Jack
- 5 Buttons for OSD Interface
Specifications
| Parameter | Symbol | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | - | -20 | - | +70 | °C |
| Storage Temperature | - | -30 | - | +80 | °C |
| LED Life | - | 30000 | - | - | Hours |
| Operating Voltage (Barrel) | Vin | - | 12.0 | - | Volts DC |
| Operating Current (Barrel) | Iin | - | 910 | - | mA |
| Brightness | - | - | 850 | - | cd/m2 |
| Contrast Ratio | - | - | 800:1 | - | - |
Product Photo
Product Connections
| No. | Function |
|---|---|
| 1 | LCD Backlight interface |
| 2 | 12V barrel jack power input 5.5mm (Centre +) |
| 3 | Standard HDMI display interface (19-pin), HDMI 1.4 - See Note 1 |
| 4 | USB touch interface (Standard 16-pin Type-C) |
| 5 | Exit Button - OSD Menu |
| 6 | Down Button - OSD Menu |
| 7 | Up Button - OSD Menu |
| 8 | Menu Button - OSD Menu |
| 9 | Power Button |
| 10 | 3.5mm Analog Audio Output (Not fitted standard) |
| 11 | 6-pin LCD Display Touch interface |
| 12 | 40-pin LCD Display interface |
Note 1
- Type: Standard HDMI Connector
- Version: HDMI 1.4
- Description: Our 12.1-inch display is equipped with a Standard HDMI 1.4 connector for digital video and audio input. This interface allows for a simple and efficient connection to HDMI-enabled devices.
- Pin Configuration: 19-pin Type A HDMI connector
- Color Support: Supports 24-bit color depth for vibrant and clear images
- Cable Type: Standard HDMI cable is recommended for connection, with High-Speed HDMI cable required for optimal performance and to ensure compatibility with the HDMI 1.4 specification
4DHDMI-121-1280-800-NT-NM-500
- Details Coming Soon...
4DHDMI-121-1280-800-NT-NM-850
- Details Coming Soon...
4DHDMI-121-1280-800-NT-EAR-500
- Details Coming Soon...
4DHDMI-121-1280-800-NT-EAR-850
- Details Coming Soon...
4DHDMI-156-1920-1080-CT-CLB-500
- Details Coming Soon...
4DHDMI-156-1920-1080-CT-CLB-850
- Details Coming Soon...
4DHDMI-156-1920-1080-NT-NM-500
- Details Coming Soon...
4DHDMI-156-1920-1080-NT-NM-850
- Details Coming Soon...
Part Number Breakdown
4DHDMI-1-2-3-4-5-6
- 1 = Size
- 2 = Horizontal Resolution
- 3 = Vertical Resolution
- 4 = Touch Option
- 5 = Mounting Option
- 6 = Brightness
Details:
- 1 - Size inches : 34 = 3.4", 50 = 5.0", 70 = 7.0", 101 = 10.1", 121 = 12.1" etc
- 2 - Horizontal Resolution : 480, 800, 1024, 1280, 1920 Pixels
- 3 - Vertical Resolution : 272, 480, 600, 800, 1080, 1200, Pixels
- 4 - Touch Option : NT = Non Touch, CT = Capacitive Touch
- 5 - Mounting Option : EAR = Metal or Plastic EARs/Tabs, CLB = Glass Cover Lens Bezel, NM = No Mounting option
- 6 - Brightness : 350 = 350nits, 500 = 500nits, 1000 = 1000nits
Example:
4DHDMI-70-800-1280-CT-EAR-1000
7.0", 800x1280 resolution, Capacitive Touch, Mounting tabs/ears, 1000nit (cd/m2)
Revision History
Datasheet Revision
| Revision Number | Date | Description |
|---|---|---|
| 0.1 | 01/03/2025 | Initial Draft |
| 1.0 | 08/08/2025 | Public Release |
